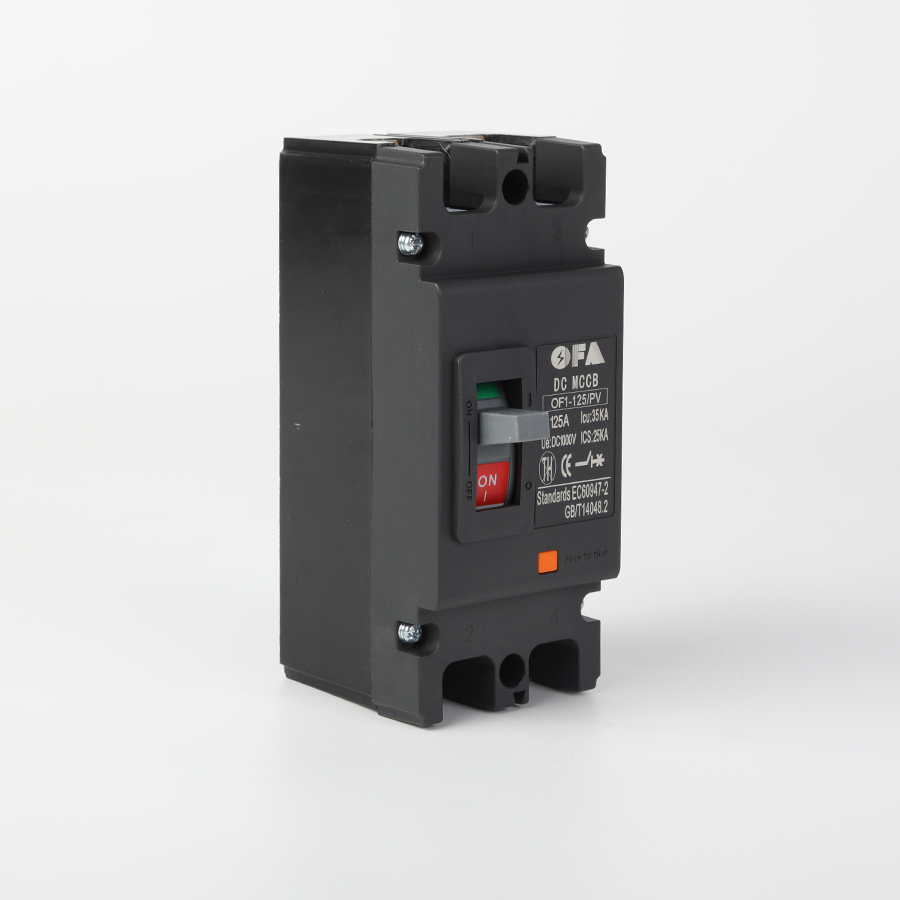

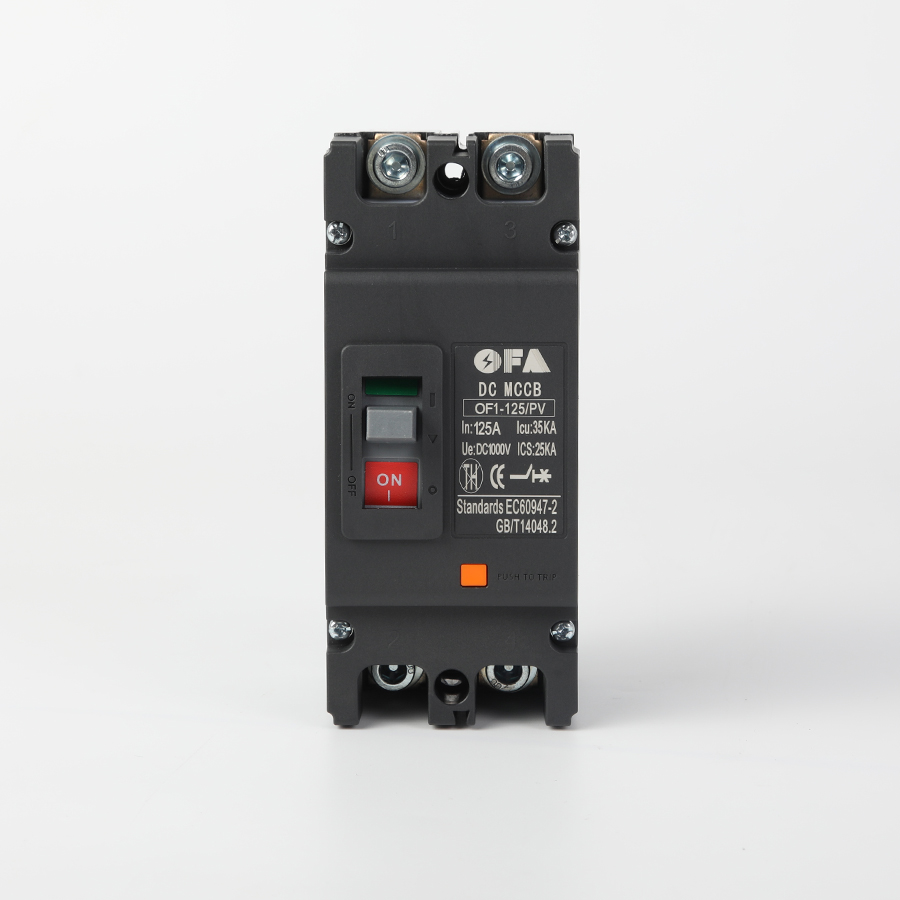

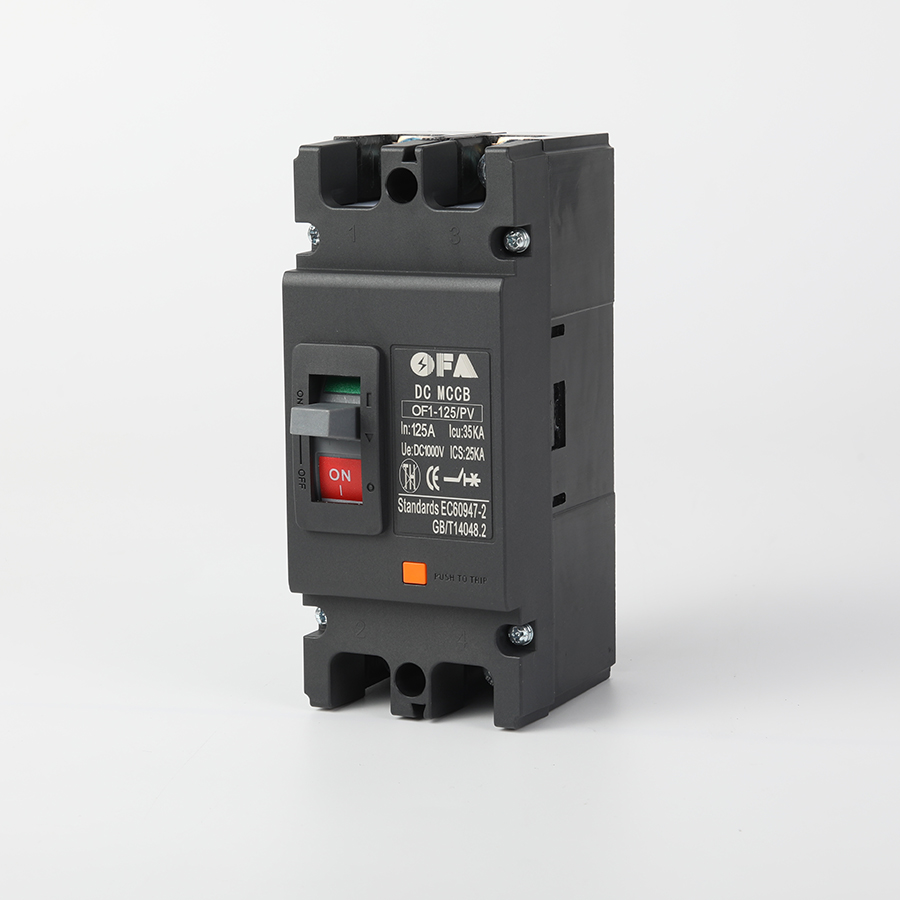

The OF1-250/PV DC Molded Case Circuit Breaker (MCCB) is engineered to provide reliable isolation, overcurrent, and short-circuit protection for high-voltage direct current (DC) solar photovoltaic (PV) power systems and energy storage applications.
Direct current does not have a natural zero-crossing point like alternating current (AC), making electrical arcs more challenging to extinguish. Dedicated DC MCCBs utilize specialized magnetic arc chutes to safely interrupt high DC fault currents.
It is commonly placed between the PV array combiner box and the inverter, or between battery storage banks and power conversion systems to act as a main circuit safety disconnect.
Yes, many modern PV DC circuit breakers in the OF1-250/PV series feature non-polar design, protecting the system against reverse current flow regardless of wiring direction.
The high-strength flame-retardant molded housing provides robust insulation, protection against environmental factors, and thermal stability in demanding renewable energy environments.
Periodic inspections should include checking connection terminal tightness, verifying mechanical switching operation, and visual checks for thermal discoloration to ensure uninterrupted long-term performance.
