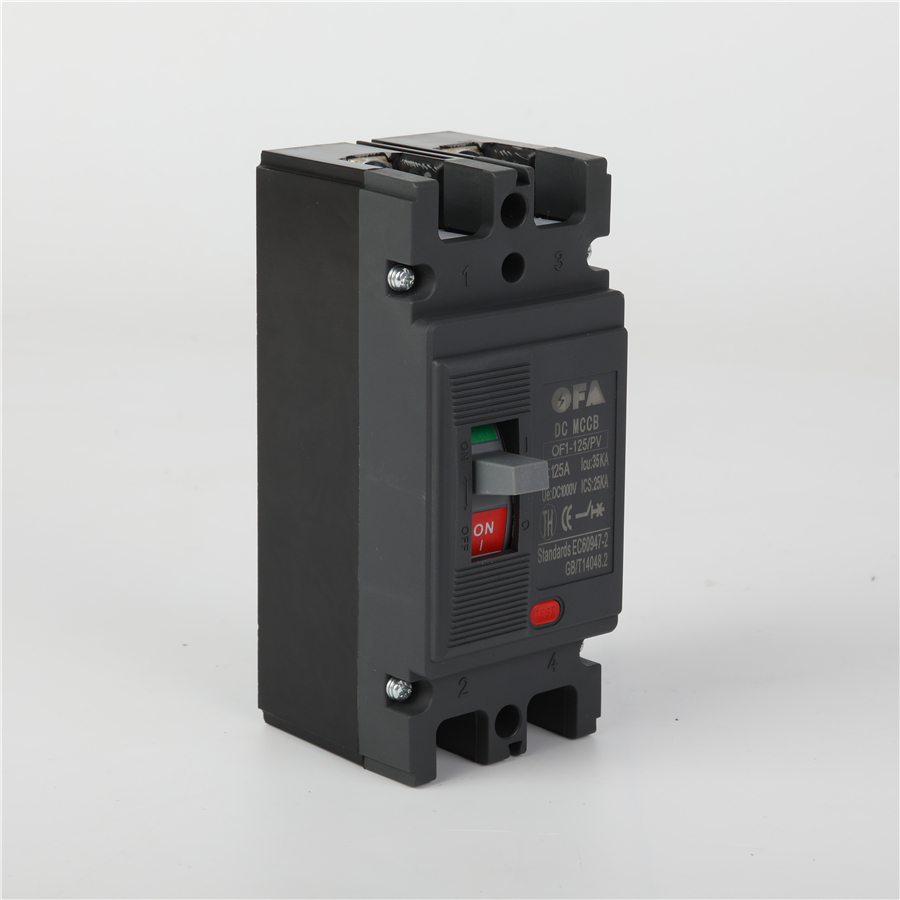

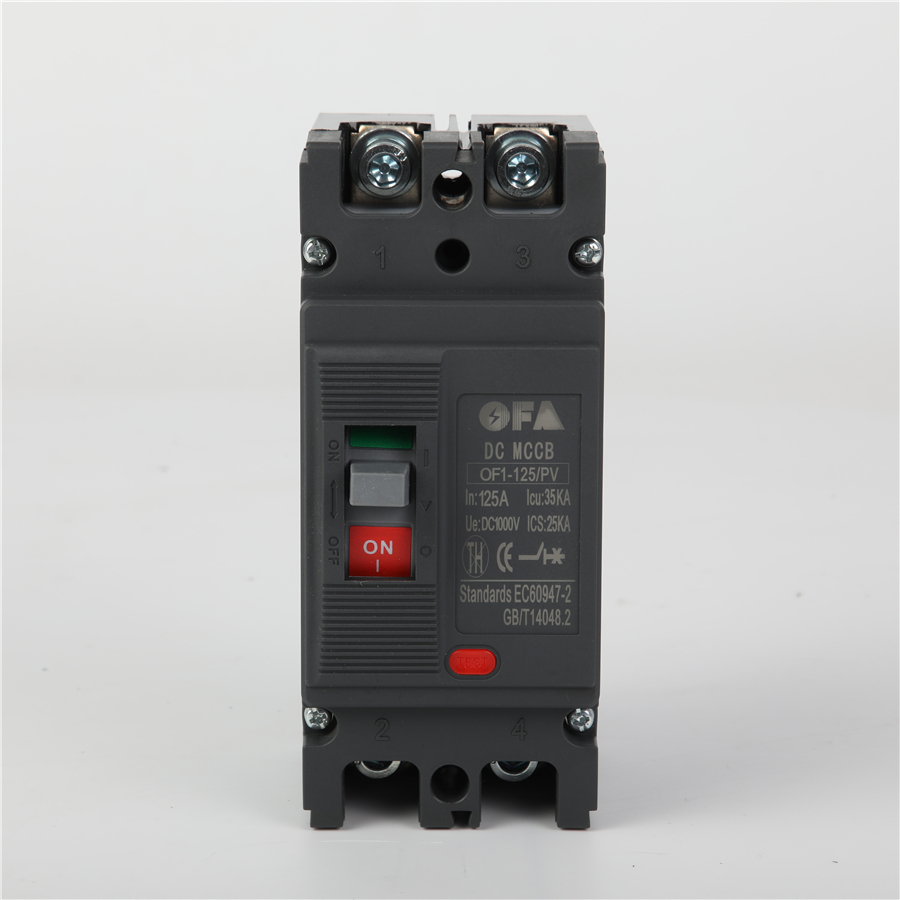

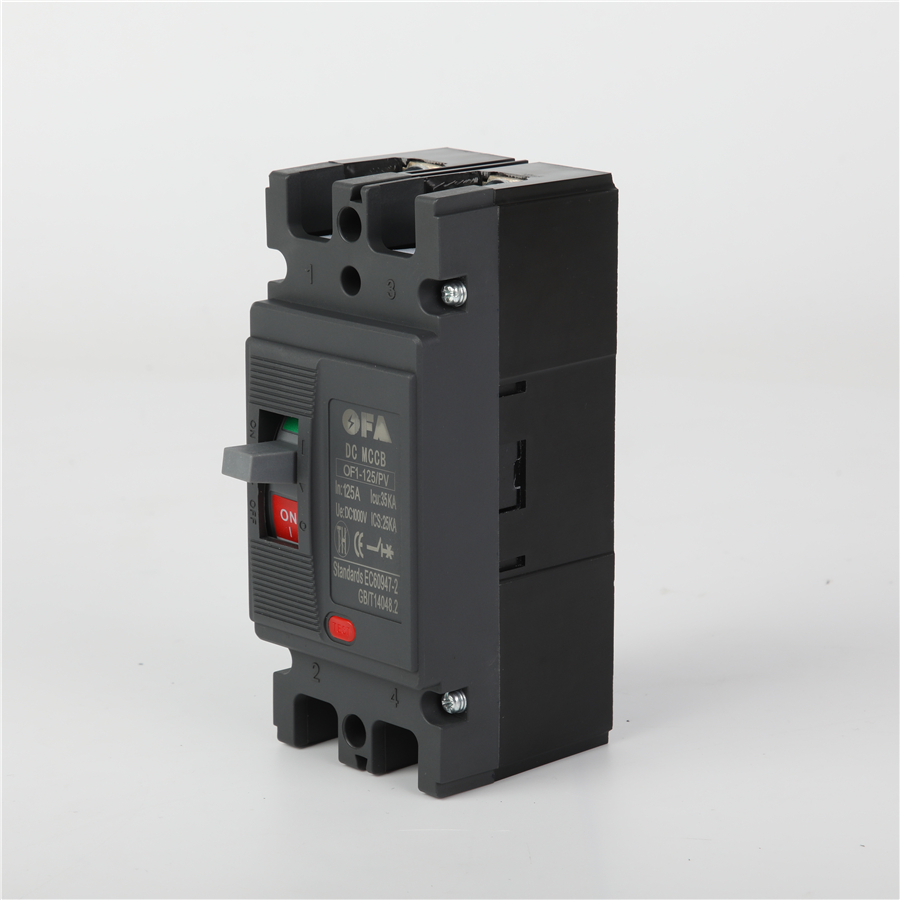

A DC Molded Case Circuit Breaker is an electrical protection device specially designed for direct current circuits. It automatically interrupts power to protect electrical systems from overloads, short circuits, and system faults in high-voltage DC environments.
Unlike AC current, DC current lacks a natural zero-crossing point, which makes electrical arcs significantly harder to extinguish. Specialized PV DC circuit breakers feature reinforced arc-chutes and magnetic blowouts to safely break high-voltage continuous DC currents.
The "PV" designation confirms that the circuit breaker has been designed, tested, and rated specifically for Photovoltaic (solar power) applications, guaranteeing high reliability under environmental fluctuations and variable DC voltage levels.
They are typically installed between the solar panel arrays and the inverter, within solar combiner boxes, commercial PV distribution panels, energy storage systems (ESS), and industrial DC power grids.
Routine visual inspections, thermal scanning, and periodic checking of electrical terminal torque settings are recommended every 6 to 12 months to ensure optimal connectivity, performance, and long-term operating safety.
