China OFD4Z7 Series 4-Pole Miniature Circuit Breaker Factory, Suppliers

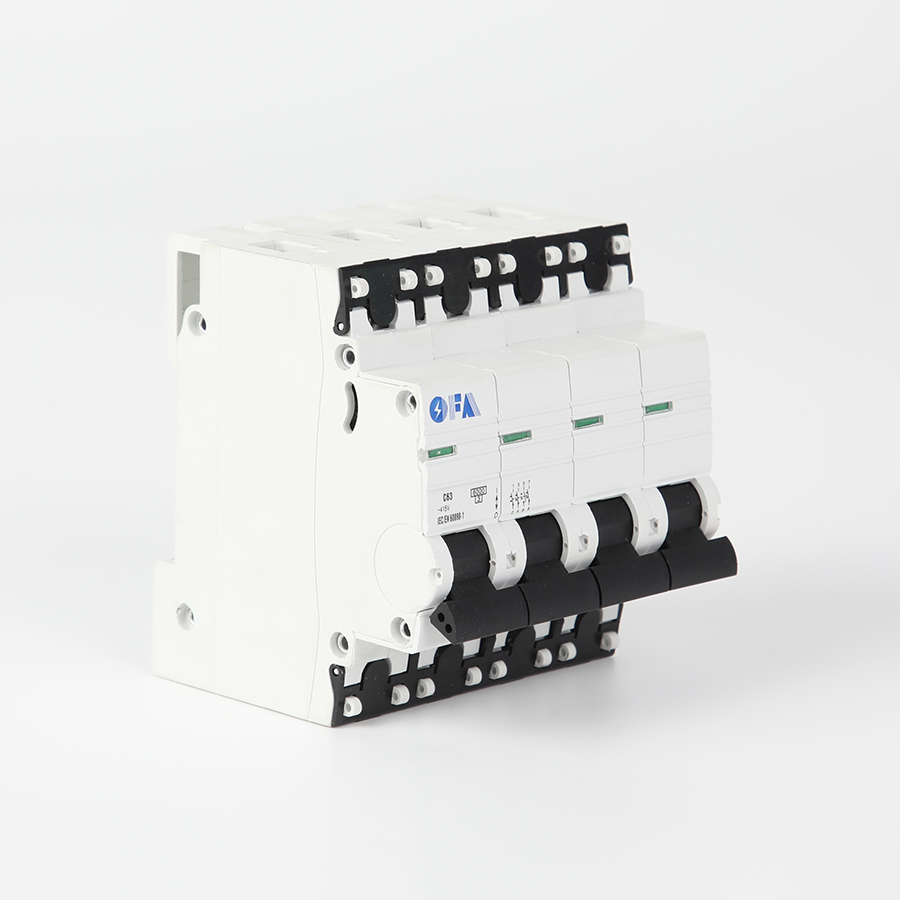

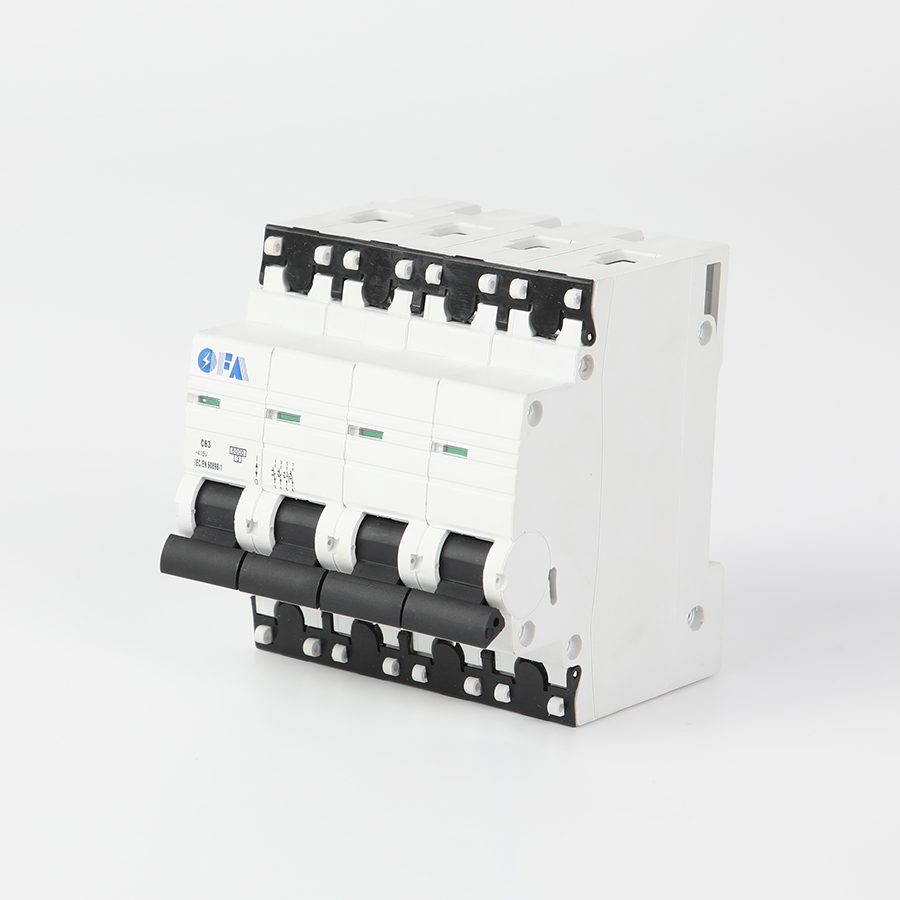

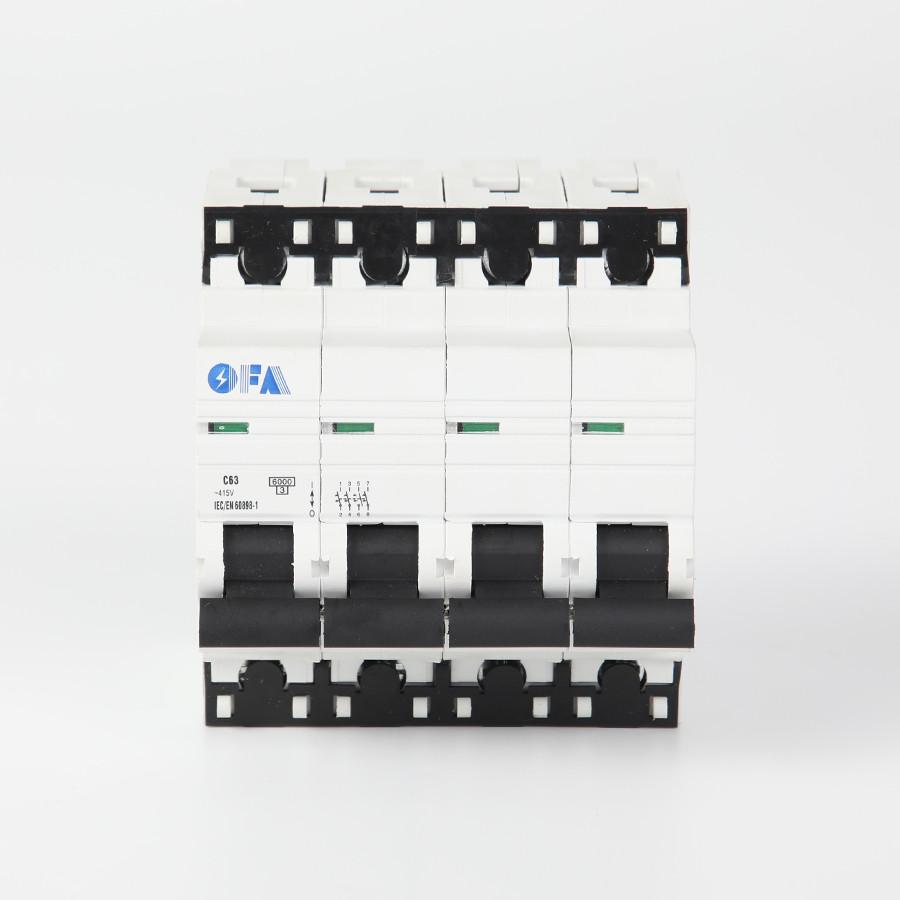

The OFD4Z7 series four-pole (4P) miniature circuit breaker is a fully polar protection device specifically developed for three-phase four-wire (3P+N) low-voltage distribution systems. The design of this product strictly follows international standards such as IEC/EN 60898-1, enabling it to provide overload protection and short-circuit protection simultaneously for the three phase lines (L1, L2, L3) and the neutral line (N), while also achieving complete electrical isolation of the circuit. As a key protection component, this circuit breaker effectively prevents systemic risks caused by neutral line faults, safeguards the power supply safety of sensitive loads, and meets the highest level of safety isolation requirements. Therefore, it is particularly suitable for industrial and commercial power distribution scenarios that demand high continuity of supply and system integrity.

Send Inquiry

Product Description

Frequently Asked Questions (FAQ)

What is an OFD4Z7 Series Miniature Circuit Breaker (MCB)?

The OFD4Z7 Series MCB is an industrial-grade electrical protection device engineered to automatically switch off electrical circuits during overload or short-circuit conditions, safeguarding equipment and electrical wiring.

What is the main difference between 1P and 2P Miniature Circuit Breakers?

A 1P (Single Pole) circuit breaker controls and protects a single phase or line wire. A 2P (Double Pole) circuit breaker switches and protects two separate lines simultaneously, providing complete isolation for two-phase or line-and-neutral circuits.

Where are OFD4Z7 Miniature Circuit Breakers commonly applied?

OFD4Z7 circuit breakers are suitable for industrial automation, commercial power distribution systems, control cabinets, and demanding electrical installations requiring dependable overcurrent protection.

How does industrial-grade overcurrent protection work?

It utilizes thermal and electromagnetic tripping mechanisms. The thermal trip element reacts to continuous overloads, while the electromagnetic element responds instantly to severe short circuits, breaking the current flow safely.

How do I choose between 1P and 2P protection for my setup?

Select 1P for standard single-phase branch circuits where only the live line requires switching. Choose 2P when full circuit isolation (both live and neutral or two phases) is mandatory for safety and operation standards.
