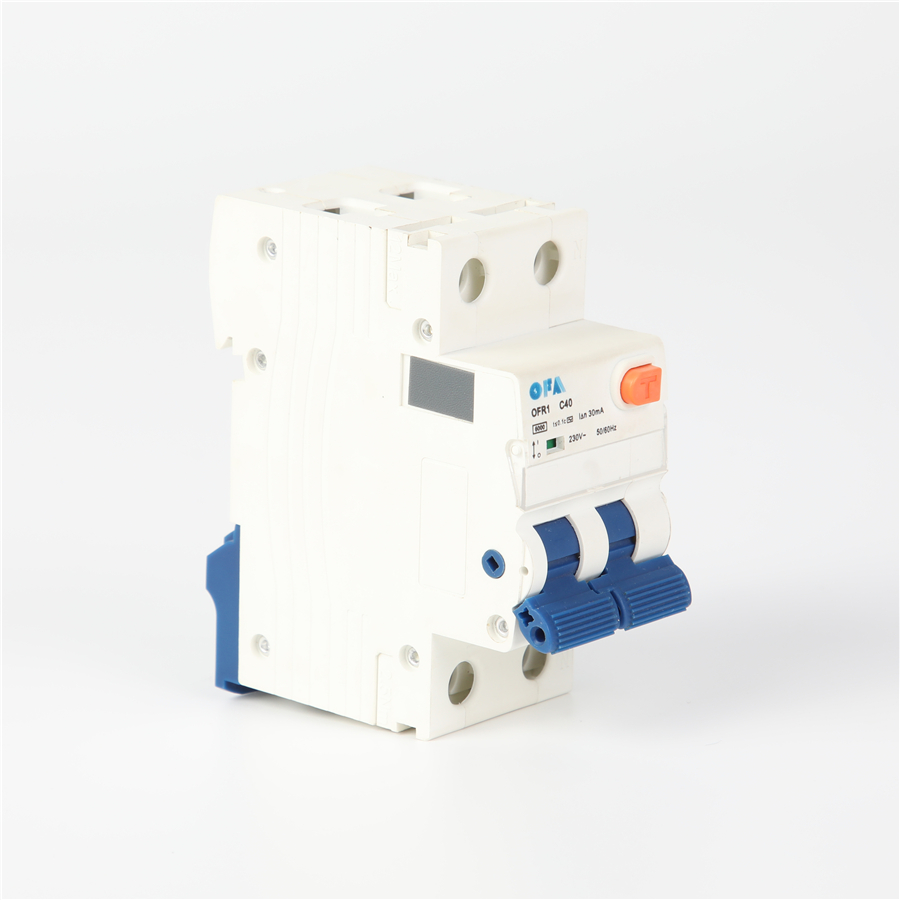

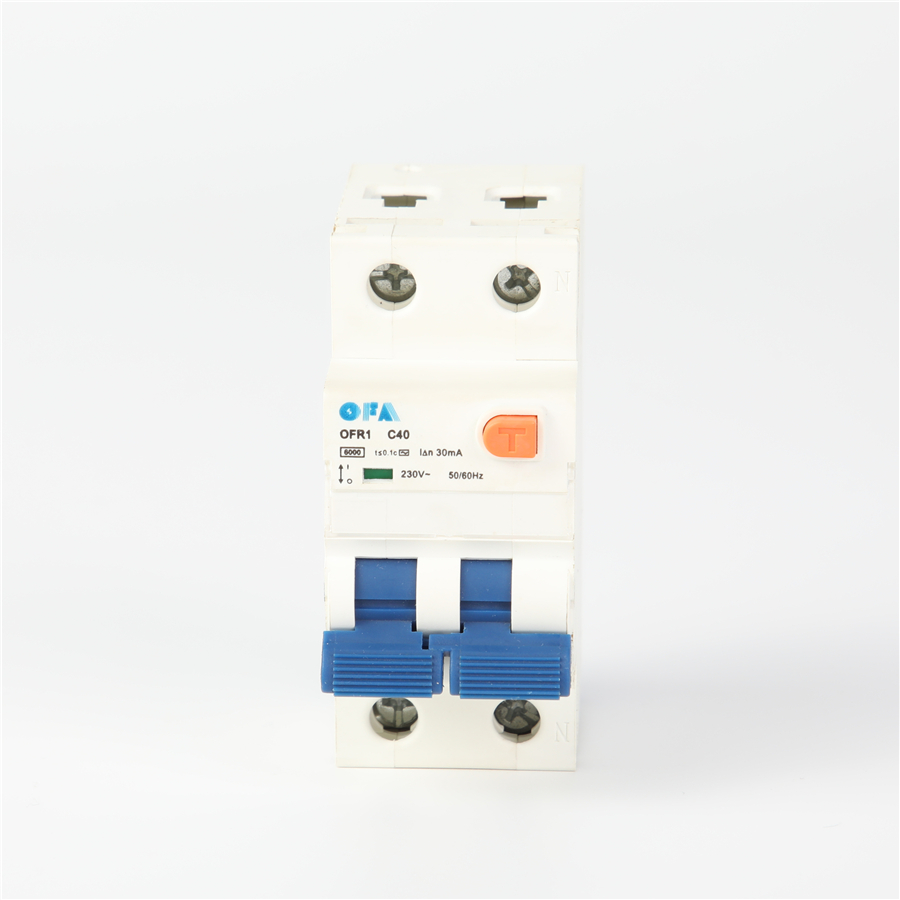

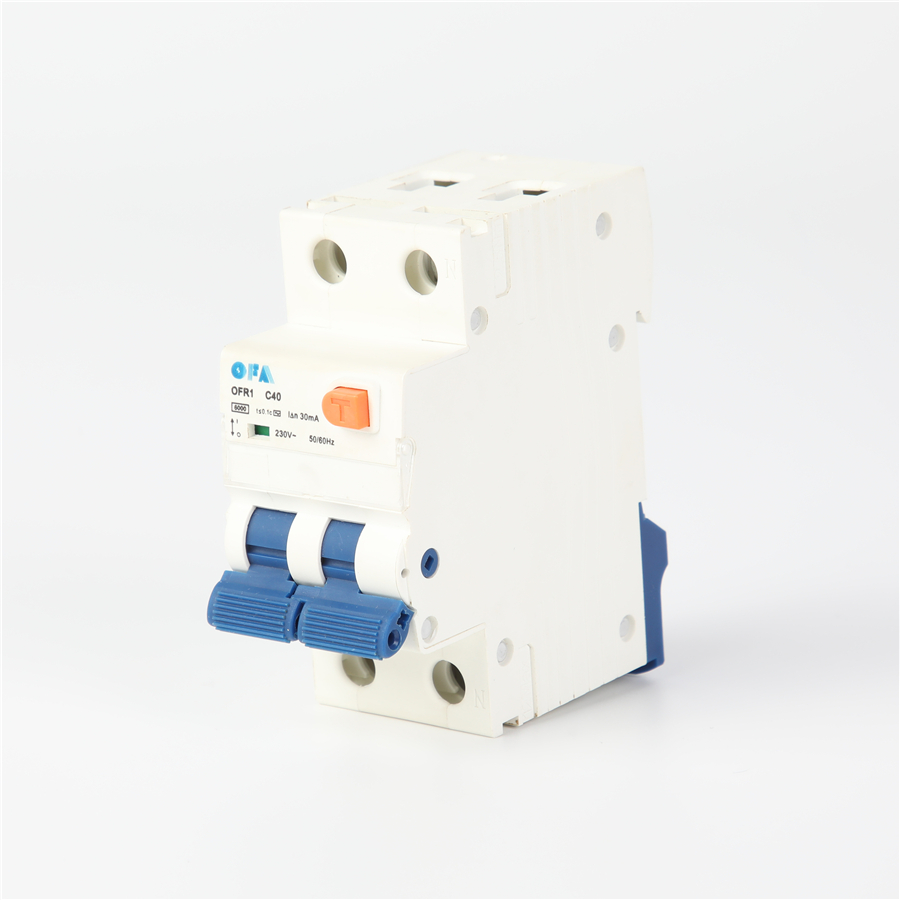

An RCBO (Residual Current Breaker with Overcurrent protection) combines the functions of an MCB (Miniature Circuit Breaker) and an RCCB (Residual Current Circuit Breaker). It protects electrical installations against both overload/short-circuit conditions and earth leakage currents, ensuring maximum personal and equipment safety.
A 2P (Two-Pole) circuit breaker is typically designed for single-phase electrical systems (switching live and neutral lines), whereas a 4P (Four-Pole) circuit breaker is designed for three-phase four-wire systems to ensure complete isolation across all three phase lines and the neutral line.
1P+N RCBOs switch both phase and neutral lines while maintaining a compact modular width. This saves critical space inside distribution boards while guaranteeing enhanced fault identification and isolation for individual circuits.
High-performance breakers feature advanced arc-extinguishing capabilities, rapid response times, and higher breaking capacity. They effectively prevent electrical fires, minimize thermal damage to wiring, and guard against electric shock during insulation faults.
The rated current (such as 63A or 80A) should be selected based on the total expected electrical load and cable gauge capacity of the targeted circuit. The breaker rating must equal or slightly exceed the maximum continuous current of the load without exceeding the safe current-carrying capacity of the conductors.
