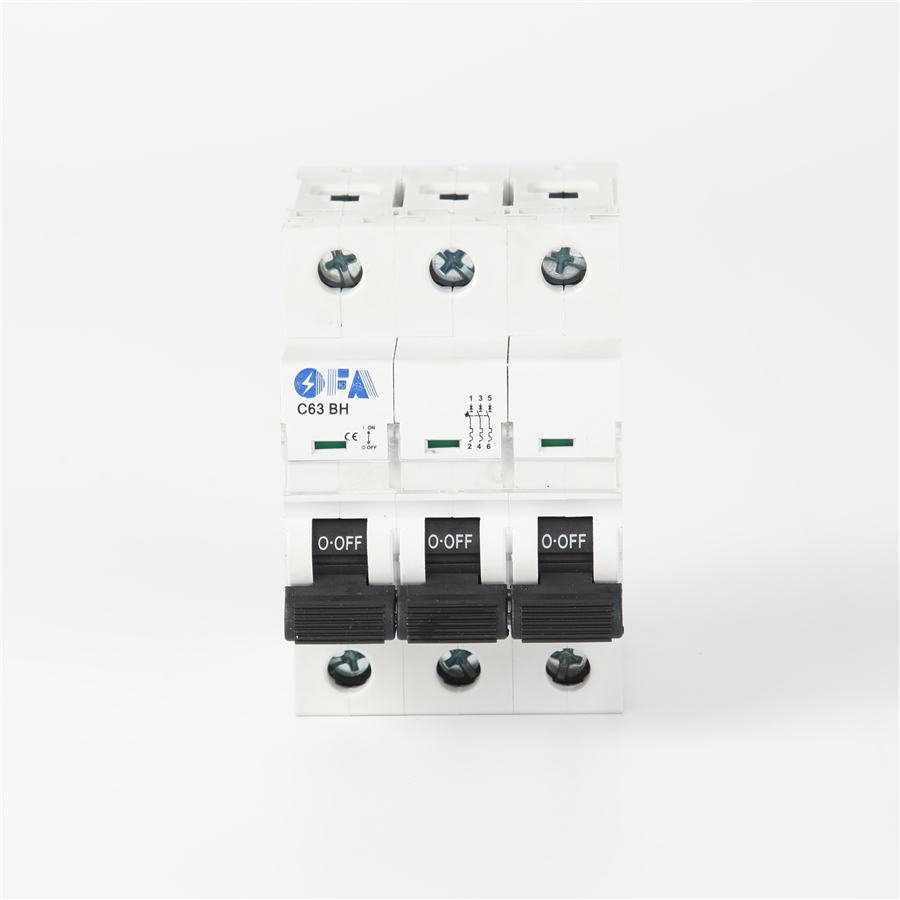

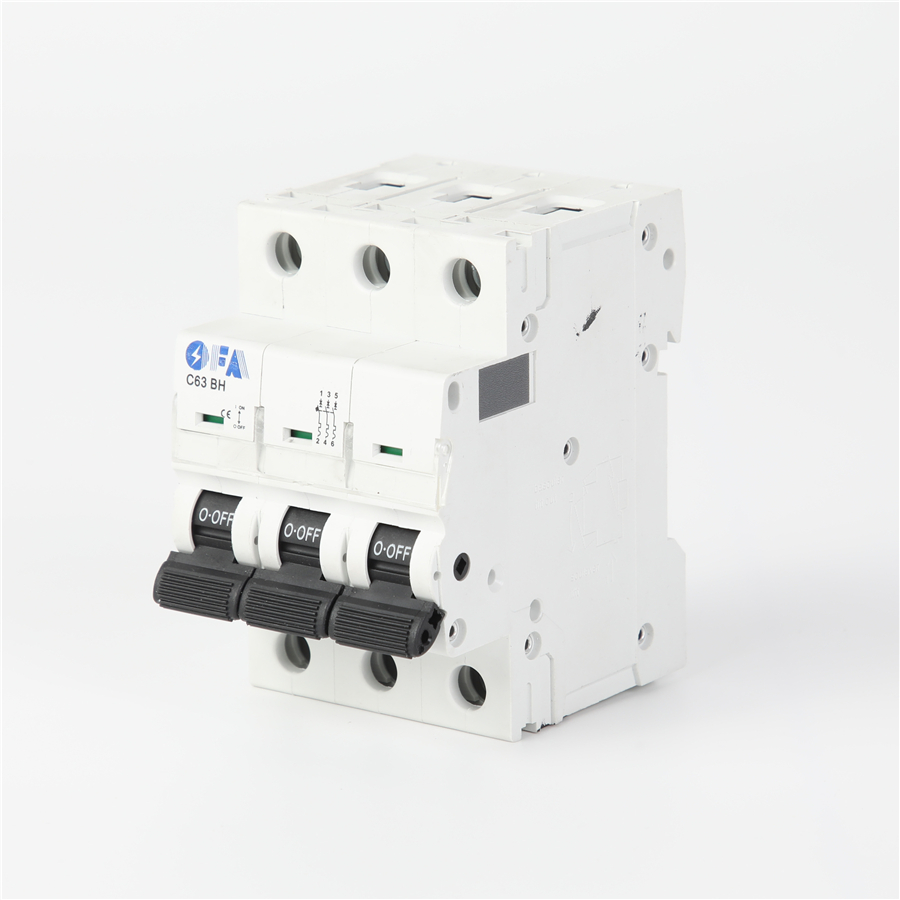

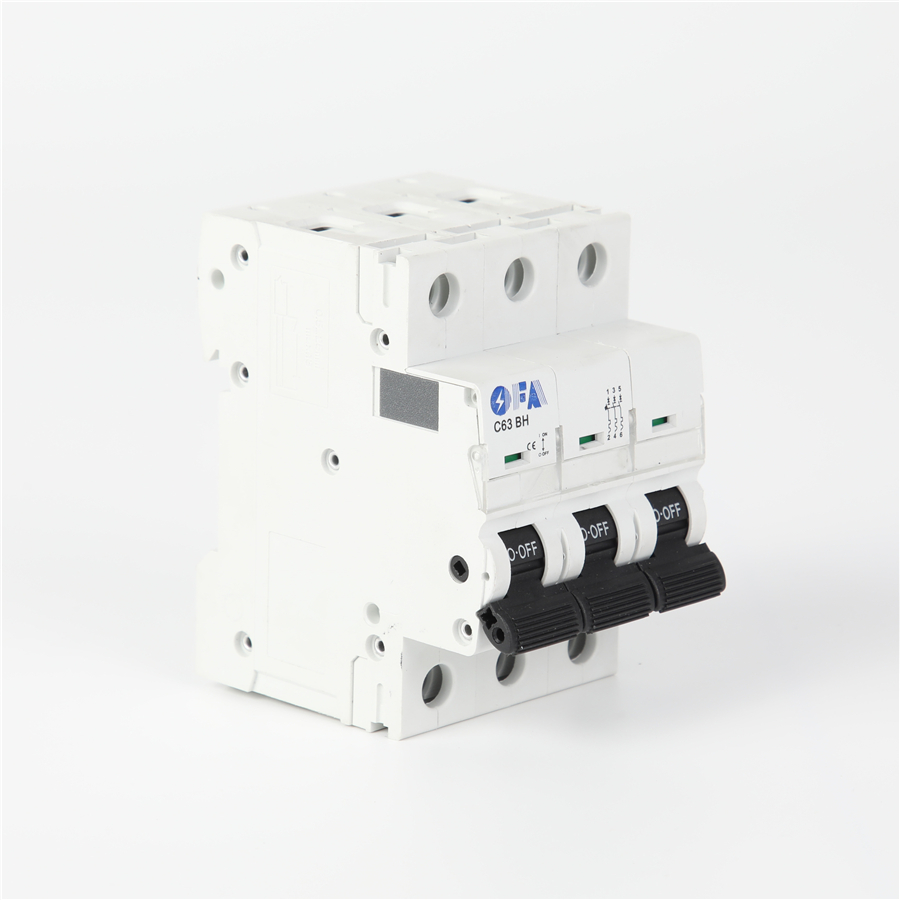

High-Quality OFIS-BH Series 3P Miniature Circuit Breaker Supplier, Manufacturer

The OFIS-BH Series 3P (Three-Pole) Miniature Circuit Breaker is a core protective device engineered for three-phase low-voltage distribution systems. Manufactured in strict compliance with international electrotechnical standards, its primary function is to deliver precise overload and short-circuit protection for three-phase circuits and connected equipment. Its 3-pole common trip mechanism ensures the simultaneous disconnection of all three phase conductors in response to a fault on any single phase. This effectively prevents equipment damage, such as burnout of three-phase motors, caused by a single-phasing condition, solidifying its role as a critical component for ensuring the safety and stable operation of three-phase power systems.

Product Description

Related Products

OFIS-BH Series 2P Miniature Circuit Breaker

OFIS-BH Series 2P Miniature Circuit Breaker

OFIS-BH Series 1P Miniature Circuit Breaker

OFIS-BH Series 1P Miniature Circuit Breaker

OFIS-BH Series 4P Miniature Circuit Breaker

OFIS-BH Series 4P Miniature Circuit Breaker

Frequently Asked Questions (FAQ)

Q1 What is the main function of the OFIS-BH Series Miniature Circuit Breaker?

The OFIS-BH series miniature circuit breaker (MCB) is designed to protect electrical installations against overloads and short circuits, ensuring operational safety and switching functionality for domestic, commercial, and industrial applications.

Q2 What is the difference between 1P, 2P, and 4P circuit breakers?

1P (Single Pole) switches and protects a single live wire; 2P (Double Pole) protects and switches both live and neutral wires for single-phase circuits; 4P (Four Pole) is designed for three-phase systems where three live wires and the neutral line require protection and isolation.

Q3 How do I select the right pole configuration for my circuit?

Choose a 1P breaker for basic single-phase lighting or small appliance circuits, a 2P breaker for total isolation of single-phase loads, and a 4P breaker for balanced or unbalanced three-phase power distribution networks.

Q4 Are these miniature circuit breakers suitable for DIN rail mounting?

Yes, OFIS-BH series circuit breakers feature standard modular design for easy and fast mounting on standard 35mm DIN rails in distribution boards.

Q5 What protective mechanisms are integrated into these MCBs?

They integrate thermal tripping mechanisms for overload protection and magnetic tripping mechanisms for instantaneous short-circuit protection.
