OEM OFD4Z7 Miniature Circuit Breaker: Industrial-Grade Overcurrent Protection Solution Manufacturers, Manufacturer

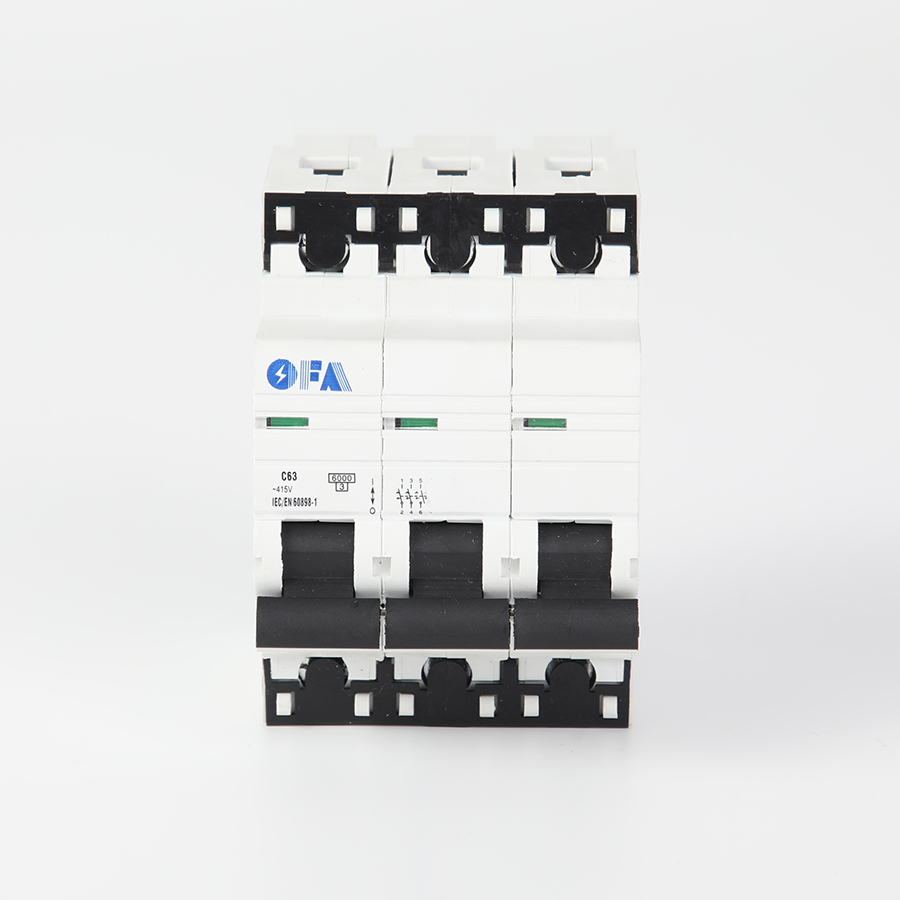

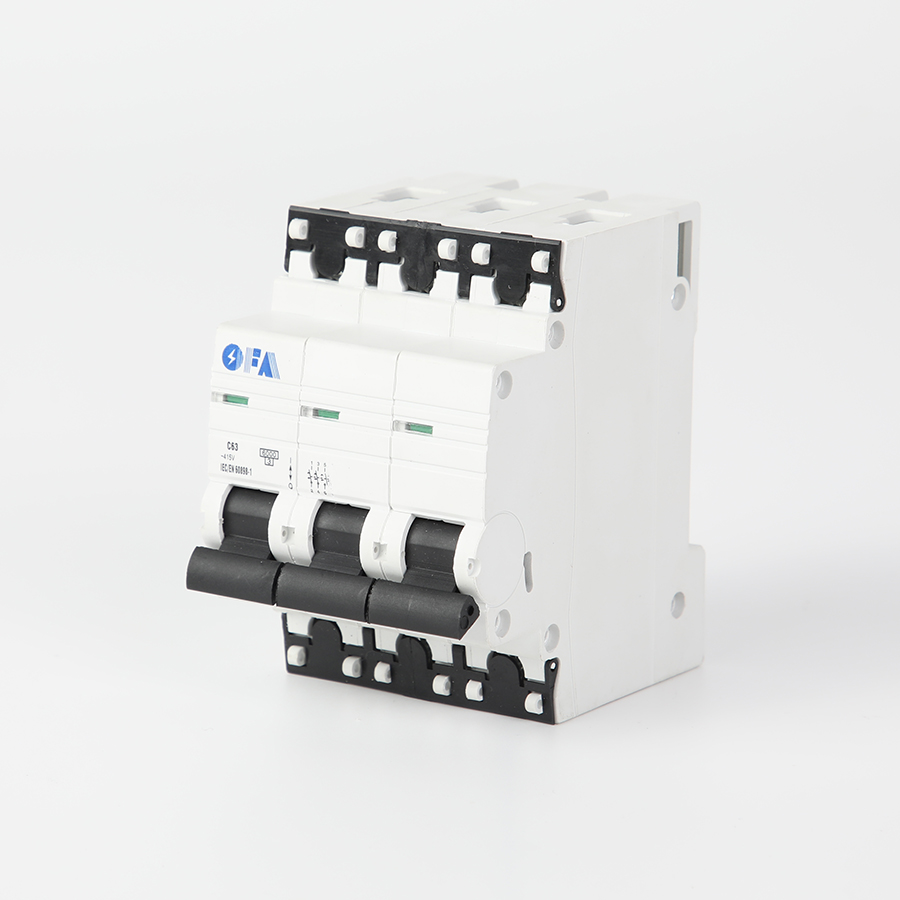

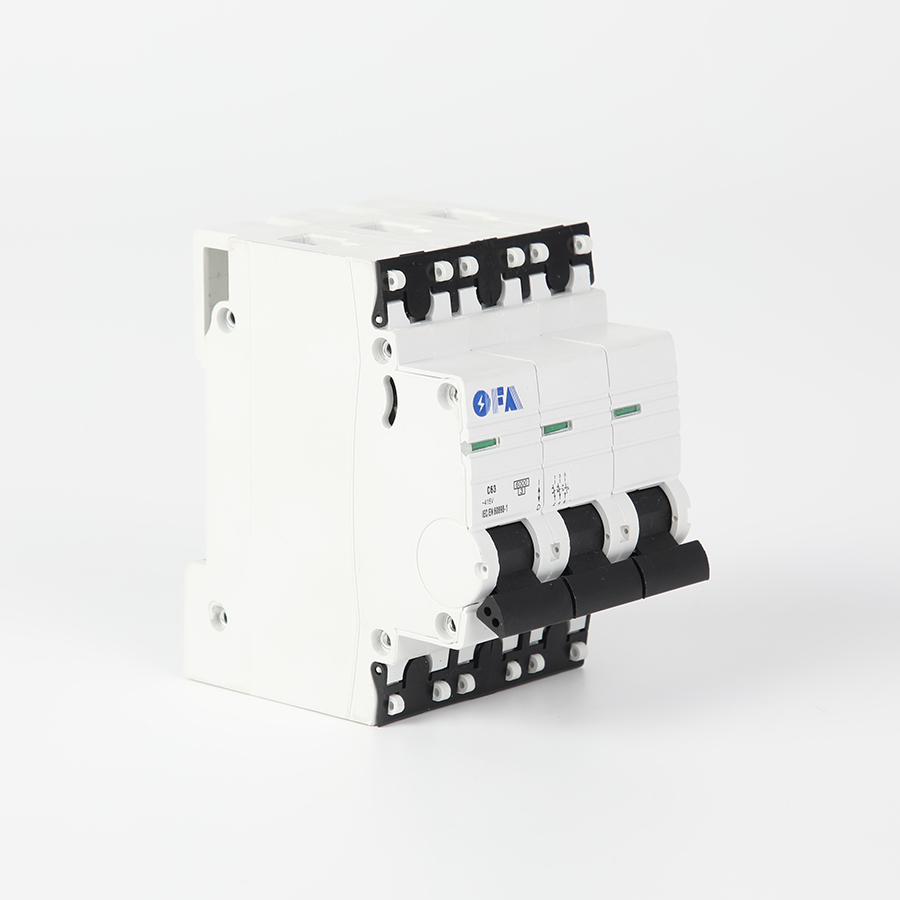

The OFD4Z7 series miniature circuit breaker is a three-pole overcurrent protection device designed and developed by our company in accordance with the IEC/EN 60898-1 international standard. This product has a rated voltage of 415V (AC 50/60Hz), a rated current coverage of up to 63A, and a breaking capacity of up to 6000A. It is suitable for three-phase four-wire distribution systems. It provides reliable overload and short-circuit protection for circuits and three-phase electrical equipment (such as motors, compressors, heaters, etc.), while also offering isolation functionality. It is an ideal choice for industrial distribution boxes, commercial complexes, and residential three-phase incoming lines.

Send Inquiry

Product Description

Frequently Asked Questions

What is the primary function of OFD4Z7 Series Miniature Circuit Breakers?

The OFD4Z7 series miniature circuit breakers provide essential protection against overload and short-circuit faults in electrical distribution systems, ensuring circuit safety and equipment durability.

What are the differences between 1P, 2P, and 4P circuit breakers?

1P (Single-Pole) breakers protect one line in single-phase circuits. 2P (Double-Pole) breakers protect both live and neutral lines. 4P (Four-Pole) breakers are designed for comprehensive three-phase four-wire electrical installations.

How do I choose the suitable pole configuration for my project?

Select 1P for basic single-phase residential lighting or small appliance circuits, 2P for main single-phase switches or dual-line protection, and 4P for heavy-duty three-phase industrial and commercial equipment.

Are these circuit breakers compatible with standard DIN rail mounting?

Yes, the OFD4Z7 series is engineered with standard modular dimensions suitable for fast, tool-free installation on standard 35mm DIN rail distribution boards.

What protection mechanisms are integrated into these breakers?

They incorporate dual-tripping mechanisms: a thermal tripping device for inverse time-delay overload protection and an electromagnetic mechanism for instant short-circuit tripping.
