High-Quality OFAFT Series 3P Miniature Circuit Breaker Suppliers, Manufacturers

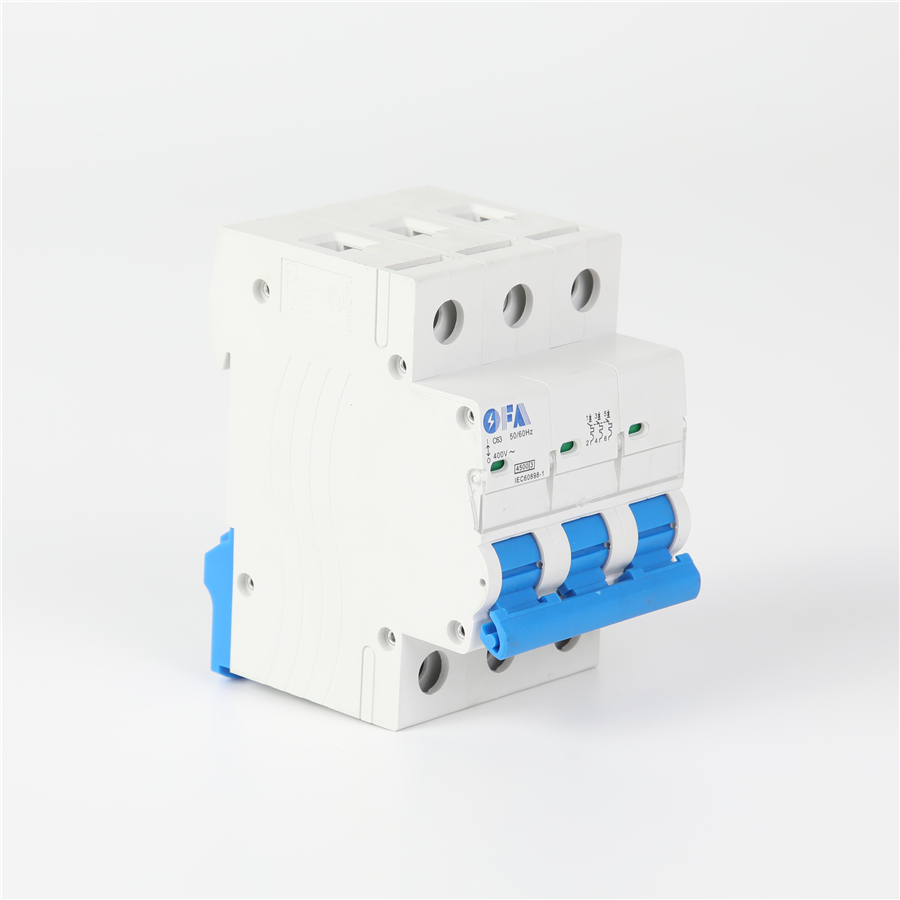

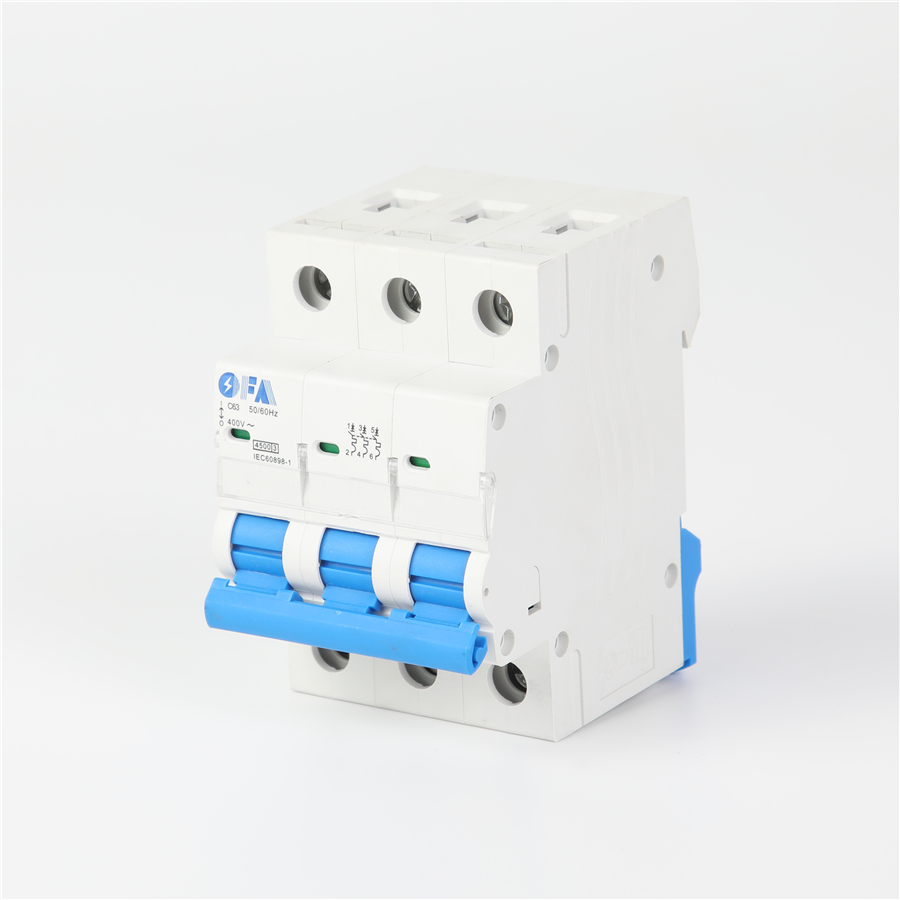

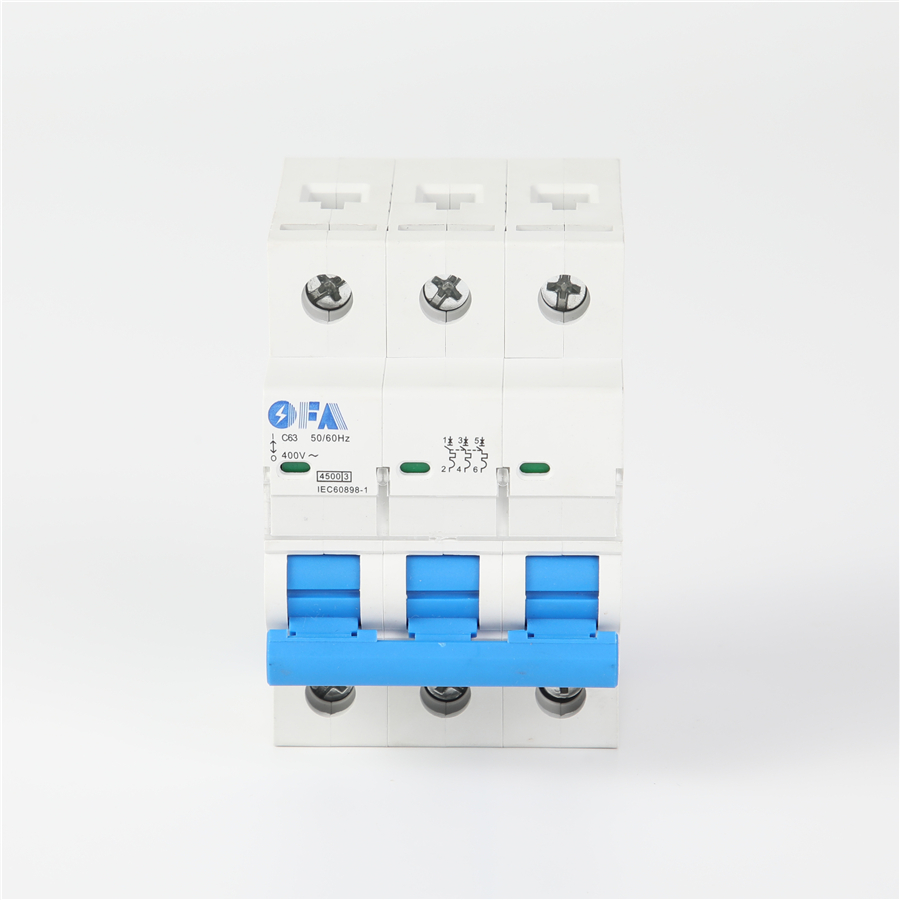

The OFAFT 3P (three-pole) miniature circuit breaker is a core protective component designed for standard three-phase low-voltage distribution systems, developed and manufactured in strict compliance with international electrotechnical specifications. Its key function relies on a three-pole linked mechanism to provide synchronous and reliable overload and short-circuit protection for both balanced and unbalanced three-phase loads. This design ensures that when a fault occurs on any one phase, all three phases are disconnected simultaneously, fundamentally preventing equipment such as motors from being damaged due to "phase loss" operation, and is a crucial device for maintaining the safety and stable operation of three-phase power systems.

Send Inquiry

Product Description

Frequently Asked Questions

Q What is a Miniature Circuit Breaker (MCB)?

A Miniature Circuit Breaker (MCB) is an automatically operated electrical switch designed to protect an electrical circuit from damage caused by excess current, typically resulting from an overload or short circuit.

Q What is the difference between 1P, 2P, and 4P MCBs?

1P (Single Pole) switches and protects a single phase line. 2P (Double Pole) switches and protects both phase and neutral lines in single-phase systems. 4P (Four Pole) switches and protects three phase lines plus the neutral line in three-phase electrical systems.

Q Where are 1P Miniature Circuit Breakers commonly used?

1P MCBs are primarily used in standard single-phase residential circuits, such as lighting systems, small home appliances, and low-power commercial branch circuits.

Q When should I choose a 4P Circuit Breaker over a 3P model?

A 4P MCB is recommended when total isolation of the neutral wire is required for system safety, such as in dual-power switching systems, TT earthing systems, or sensitive industrial installations with non-linear loads.

Q How do MCBs handle overload and short-circuit conditions?

MCBs use a bimetallic strip for overload protection (thermal operation), which bends and trips the circuit under sustained high temperature, and an electromagnetic coil for short-circuit protection (magnetic operation), which instantly trips under sudden current surges.
