Explore our high-performance OEM & ODM circuit breakers engineered for maximum breaking capacity and robust reliability
Navigating modern electrical grid requirements, thermal-magnetic efficiency, and smart trip integration
In modern industrial and commercial electrical power architectures, the Molded Case Circuit Breaker (MCCB) serves as a vital safeguard. Operating as a critical protective interface between raw supply grids and end-use machinery, an MCCB is engineered to make, carry, and interrupt normal operating currents while swiftly breaking fault currents during hazardous overload, short-circuit, and ground fault conditions. Selecting an enterprise-grade OEM Molded Case Circuit Breaker supplier is no longer just a supply-chain task; it is a core strategic choice that dictates system longevity, operational uptime, regulatory compliance, and total cost of ownership (TCO).
Modern electrical grids demand vastly higher interrupting capacities ($I_{cu}$ and $I_{cs}$) within increasingly compact physical frame sizes. Traditional thermal-magnetic release mechanisms utilize bimetallic strips for inverse-time thermal overload protection paired with electromagnetic coils for instantaneous short-circuit protection. While thermal-magnetic units remain robust for standard distribution, modern OEM demands are driving rapid transition toward electronic trip units (ETUs) and microprocessor-based smart releases.
Time-tested, passive protection relying on physical bimetal deflection and magnetic coils. Ideal for standard industrial distribution and cost-sensitive applications.
Microprocessor-driven protection offering field-adjustable LSI/LSIG parameters, high trip precision, and immunity to environmental ambient temperature variations.
Integrated Modbus, RS485, and wireless communication telemetry for real-time current monitoring, predictive thermal modeling, and remote control actuation.
Innovations shaping next-generation low-voltage circuit breaking technology
The global shift toward renewable energy generation, localized energy storage systems (BESS), and electrification of transport demands unprecedented versatility from circuit breakers. OEM manufacturers must evolve beyond static current interruption into active, data-rich power protection nodes.
Unlike AC currents that naturally pass through a zero-current point twice per cycle, DC currents lack a natural zero-crossing, making arc extinction significantly more challenging. OFA’s dedicated PV and DC MCCB series (such as the DCOF1-250/PV) utilize specialized multi-pole series connections, permanent magnetic blowouts, and ceramic arc chutes to quickly stretch and extinguish high-voltage DC arcs up to 1500V DC.
In response to global RoHS and REACH regulations, modern OEM MCCBs utilize halogen-free, flame-retardant thermosetting glass-fiber reinforced unsaturated polyester resins (BMC/SMC). These materials ensure superior dielectric strength, high track resistance (CTI ≥ 600V), and zero toxic gas emission during high-temperature short-circuit events.
Integrating contact degradation algorithms based on cumulative interrupted $I^2t$ energy enables smart MCCBs to transmit early maintenance alerts via edge gateways before catastrophic contact welding occurs, transforming reactive repairs into proactive asset management.
Field-installable, plug-and-play accessories—including Shunt Trips (ST), Undervoltage Releases (MN), Auxiliary Contacts (OF), and Alarm Contacts (SD)—allow global OEMs and panel builders to quickly customize base breaker frames to specific customer schematics.
Customized switchgear and protection topologies engineered for diverse operating environments
Industrial applications present unique environmental, mechanical, and electrical stresses. Wenzhou OFA Electrical Technology Co., Ltd. delivers customized protection solutions matched to field-specific conditions:
| Industry Sector | Key Operational Challenge | Recommended Protection Topology | Primary Technical Requirement |
|---|---|---|---|
| Solar PV & BESS Storage | Bidirectional direct currents, high ambient temperatures, rapid voltage fluctuations. | DCOF1-250/PV DC MCCB Series | Non-polarized DC breaking, 1500V insulation voltage ($U_i$), high thermal stability. |
| Industrial Automation & MCC | High inductive motor inrush currents, frequent switching operations. | BA88 & DCM1 Electronic MCCB Series | Adjustable short-time delay ($t_{sd}$), Motor Protection (Type 2 coordination), 10,000+ mechanical cycles. |
| Mission-Critical Data Centers | Harmonic pollution, strict uptime needs, zero fault propagation allowance. | OFA-M1 Series with Microprocessor Trip | Zone Selective Interlocking (ZSI), true RMS sensing, Modbus TCP communication. |
| Commercial & Smart Buildings | Sub-circuit isolation, phase imbalance, earth leakage safety hazards. | RCBO / RCCB Integrated Solutions (OFKL/NB1L) | High-sensitivity earth leakage trip (30mA Type A/B), space-saving compact housing. |
| EV Supercharging Hubs | Continuous high current loads, outdoor thermal cycling, pulsating DC components. | OF1 & OFGX Heavy-Duty Distribution Series | IP40 enclosure compatibility, broad operating temperature spectrum (-25°C to +70°C). |
Inside OFA's Yueqing manufacturing ecosystem: How scale, quality control, and automation lower total cost of ownership
Situated in Yueqing, Wenzhou—universally recognized as the Low-Voltage Electrical Capital of China—Wenzhou OFA Electrical Technology Co., Ltd. leverages an ultra-dense industrial cluster. This ecosystem provides immediate access to high-purity silver-tin-oxide ($AgSnO_2$) contact metallurgy, precision stamping, custom molding, and high-rigidity spring mechanisms.
OFA enforces a strict 100% full-inspection standard operating procedure (SOP) across every production phase. Unlike suppliers relying on loose statistical sampling, every single breaker leaving our assembly line undergoes automated testing for:
Exploration of our primary product series: MCCB, MCB, ACB, RCCB, RCBO, and Isolator Switches
Designed to make, carry, and break currents under normal and abnormal conditions. Primary lines include BA88 Electronic, DCM1, DCOF1, OFM1, OFBLT, OF1, and OFA-M1 Series.
Compact, high-breaking capacity protection for terminal distribution circuits. Includes OF6KA, OF10KA C65, OFAFT, OFD4Z7, OFDL, OFDP, OFDZ47, OFEU, OFKL, OFL7, OFL8, OFNC, and OFP series.
High-capacity main incoming protection devices. Featuring the OFW1 Intelligent Universal Circuit Breaker series with integrated digital protection releases and communication modules.

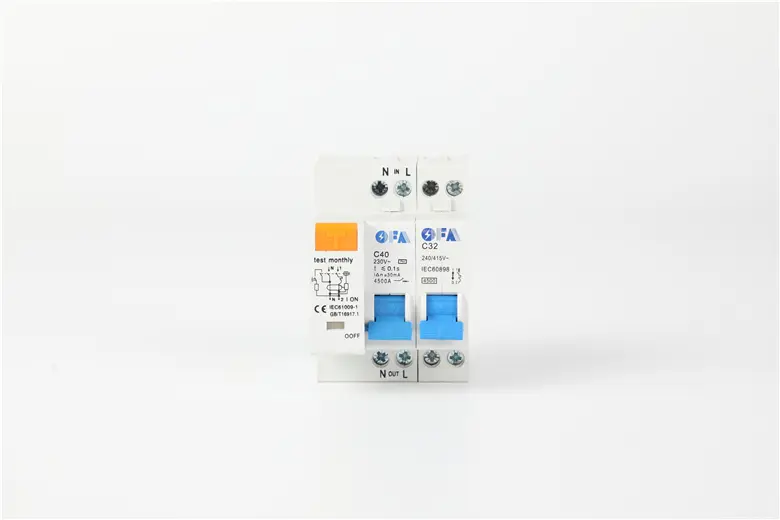

Dedicated residual current detection to guard personnel against electric shock and prevent earth-leakage electrical fires. Models: OFAP6-AC, OFDPN, OFDX, OFGX, OFID, OFL7, OFPM.

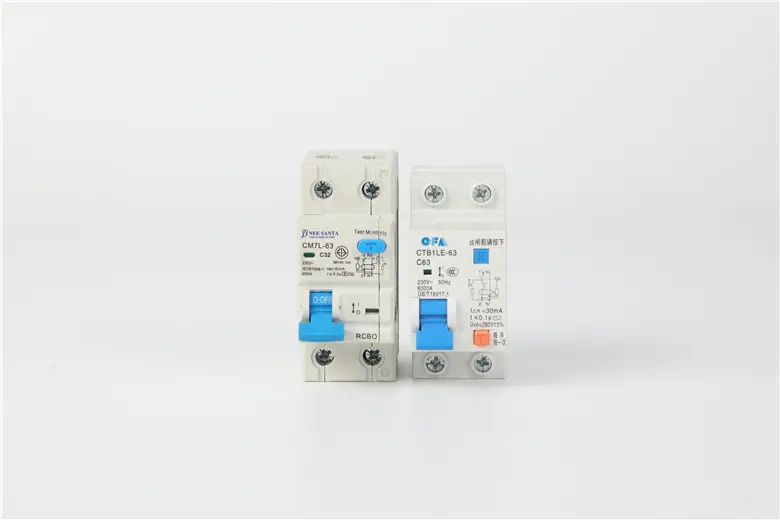

Integrated triple-protection units combining overload, short-circuit, and high-sensitivity residual current protection into a single module. Lines: OFC, OFKL-80A, NB1L, OFMIN, OFOM, OFR1.
High-reliability isolation switches designed to provide visible, safe isolation of circuits for maintenance staff. Featuring OFIS-125A, OFIS-BH, and OFIS-DS Series.
From custom specification mapping to volume shipment: A structured B2B collaboration framework
Review of technical specifications, breaking capacity requirement ($I_{cu}$/$I_{cs}$), thermal rating ($I_n$), pole count (2P, 3P, 4P), and target certification standards (IEC, UL, CE).
CAD/CAE mold customization, internal current-path simulation, custom labeling/branding design, and initial sample production within accelerated timeframes.
Rigorous verification of temperature rise, mechanical endurance, dielectric strength, and short-circuit interruption in certified testing laboratories.
Batch production under 100% full-inspection SOPs, custom export-grade protective packaging, and flexible sea/air logistics fulfillment.
Read why global system integrators, plant engineers, and panel builders rely on OFA for low-voltage protection
Technical Director, System Integration Firm (Poland)
Maintenance Manager, Manufacturing Plant (Germany)
Facilities Supervisor, Commercial Property Management (Thailand)
Site Engineer, Solar Power Project (Chile)
Comprehensive engineering and procurement inquiries regarding OFA Molded Case Circuit Breakers
Discover our extended OEM product lineup designed for diverse residential, commercial, and industrial installations
Optimize your electrical switchgear supply chain with engineering expertise from Wenzhou OFA Electrical Technology Co., Ltd. Contact our technical engineering team for custom consultations, specifications, and fast project quotes.
