Explore our core range of OEM & Standard Miniature, Molded Case, and Residual Current Circuit Breakers precision-manufactured for generator transfer and grid switching applications.
In contemporary industrial, commercial, and utility infrastructure, power resilience is non-negotiable. Modern electrical architecture demands seamless transition mechanisms between main utility power grids and auxiliary standby emergency generators. At the core of this switching integrity lies the Circuit Breaker Generator Switch—a specialized dual-purpose electrical device designed to combine overcurrent/short-circuit protection with safe, fail-safe transfer capability.
Wenzhou OFA Electrical Technology Co., Ltd., situated in the renowned low-voltage electrical capital of Yueqing, China, has established itself as an authoritative OEM/ODM factory and global supplier of high-performance circuit protection switchgear. This document provides a comprehensive technical overview of generator switch technology, thermal-magnetic and electronic tripping innovations, manufacturing ecosystems, and global enterprise procurement frameworks.
When switching between a utility power supply and an onsite generator set (genset), electrical isolation must be absolute. The breaker must prevent back-feeding—an extremely dangerous condition where generator electricity energizes the dead utility grid, posing lethal risks to utility line workers and causing severe out-of-phase synchronization damage to generator alternators when main grid power returns.
Multi-plate arc chutes split and extinguish thermal electric arcs generated during breaking operations, capable of quenching faults up to 10kA–100kA breaking capacity (Icu).
Prevents both utility and generator supply breakers from engaging simultaneously. High-reliability mechanical slides and key interlocks guarantee physical isolation.
Dual thermal-magnetic or intelligent electronic micro-processor trip units provide precise inverse-time overload protection and instantaneous magnetic short-circuit response.
Selecting the appropriate Molded Case Circuit Breaker (MCCB), Air Circuit Breaker (ACB), or Miniature Circuit Breaker (MCB) for generator transfer systems requires evaluating critical electromechanical parameters against international standards such as IEC/EN 60947-2 and UL 489.
| Category | Standard Voltage (Ue) | Rated Current (In) | Breaking Capacity (Icu) | Primary Application |
|---|---|---|---|---|
| Miniature Circuit Breakers (MCB) | 230V / 400V AC | 1A – 125A | 6kA – 10kA | Residential & Light Commercial Transfer Switch Panels |
| Molded Case Circuit Breakers (MCCB) | 400V / 690V AC, Up to 1500V DC | 16A – 1600A | 25kA – 100kA | Industrial Automation, Building Mains, PV/Storage Hybrid |
| Air Circuit Breakers (ACB) | 400V / 690V AC | 630A – 6300A | 50kA – 120kA | Main Distribution Boards, Utility Genset Interties, Sub-stations |
| Residual Current Breakers (RCCB/RCBO) | 110V / 230V / 400V AC | 6A – 100A | 4.5kA – 10kA (30mA Leakage) | Personnel Life-Safety & Ground Fault Interruption in Transfer Circuits |
Decades of operational experience driving high-volume low-voltage electrical innovation.
Located in Yueqing, Wenzhou—universally recognized as the "Capital of Electrical Appliances in China"—Wenzhou OFA Electrical Technology Co., Ltd. operates at the epicenter of the world's most concentrated low-voltage supply chain. This strategic location yields unparalleled logistical, technological, and manufacturing synergies that directly benefit international buyers, system integrators, and OEM distributors.
Within a 20-kilometer radius, the Yueqing industrial cluster provides raw contact silver-alloy metallurgy, precision stamping dies, flame-retardant BMC/PBT plastic housing molding, and automated magnetic coil assembly. This localized supply chain compresses lead times by over 40% compared to fragmented global suppliers.
Cost efficiency does not require compromise on safety. OFA enforces a 100% full-inspection Standard Operating Procedure (SOP). Every single breaker undergoes automated tripping curve calibration, dielectric withstand testing, mechanical operation cycle counts, and contact resistance verification prior to dispatch.
The transition toward decentralized power production, smart microgrids, and green energy integration is revolutionizing circuit breaker requirements globally. Several macro engineering trends define current product development:
In Tier III and Tier IV data centers, continuous power uptime is mandatory. Dual 4P MCCB generator isolation systems prevent floating neutral voltage shifts during emergency generator transfers, protecting sensitive server PSUs.
In remote off-grid mining operations, solar PV strings operate alongside heavy diesel gensets. High-capacity DC circuit breakers (OF1-250/PV) isolate solar arrays during backup generator synchronization to protect inverter bridges.
Hospital emergency wings utilize high-sensitivity Residual Current Operated Circuit Breakers (RCBO / RCCB) integrated into generator switchboards, ensuring immediate trip activation during ground faults without dropping critical life-support circuits.
Founded in 2013 and rooted in Yueqing, Wenzhou—the heart of China's electrical industry—Wenzhou OFA Electrical Technology Co., Ltd. specializes in the R&D, manufacturing, and sales of distribution switchgear, control equipment, and accessories. Upholding "Professionalism, Integrity, Innovation," we deliver high-quality components for power, energy, industrial automation, commercial construction, and equipment manufacturing.

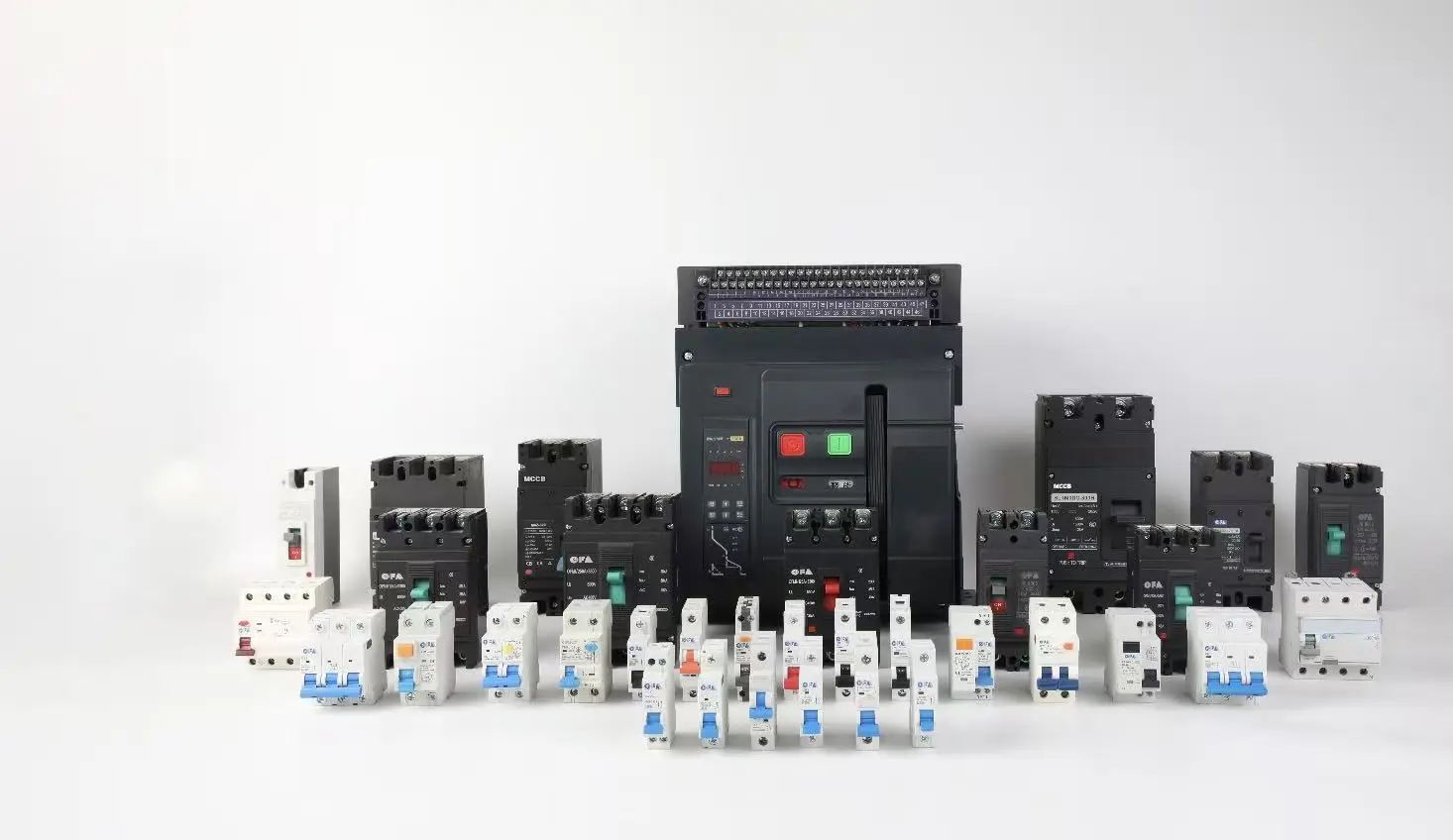

Explore our deep manufacturing portfolio spanning MCCB, MCB, ACB, RCCB, RCBO, and Isolation Switch lines engineered for standard distribution and custom OEM projects.
Primary function to make, carry, and break currents under normal circuit conditions, and to break abnormal currents during overloads and short circuits.

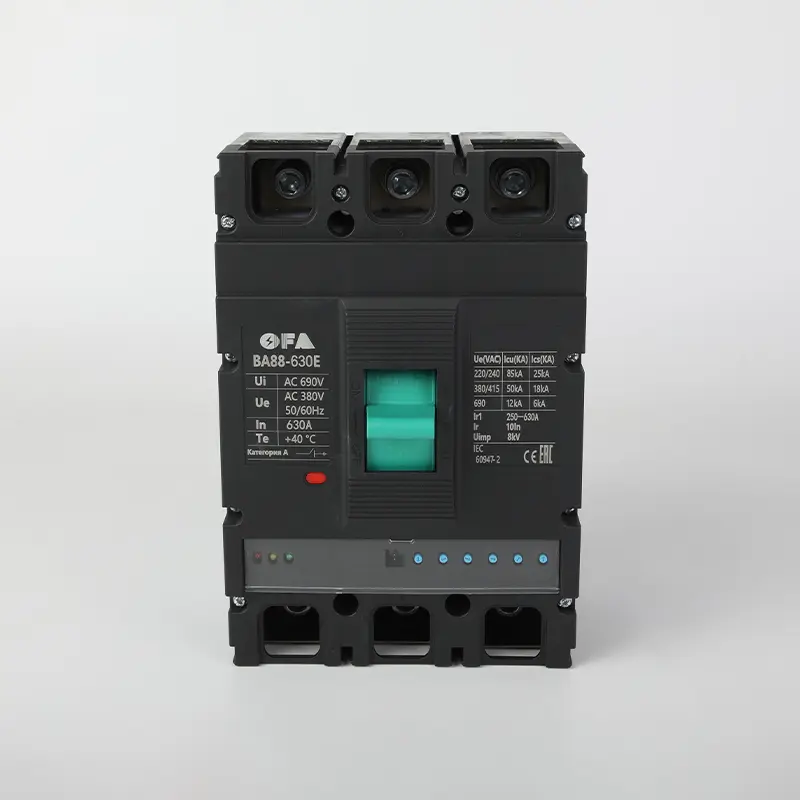

BA88 Electronic Series
DCM1 Series
DCOF1 Series
OFM1 Series

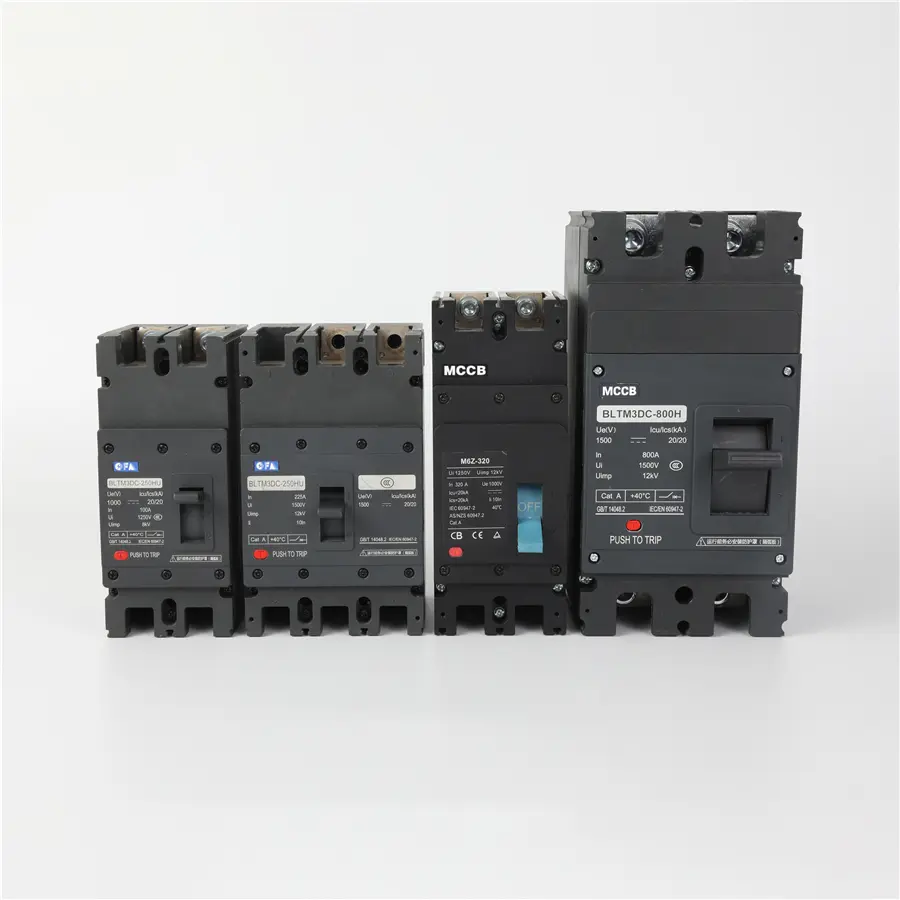

OFBLT Series

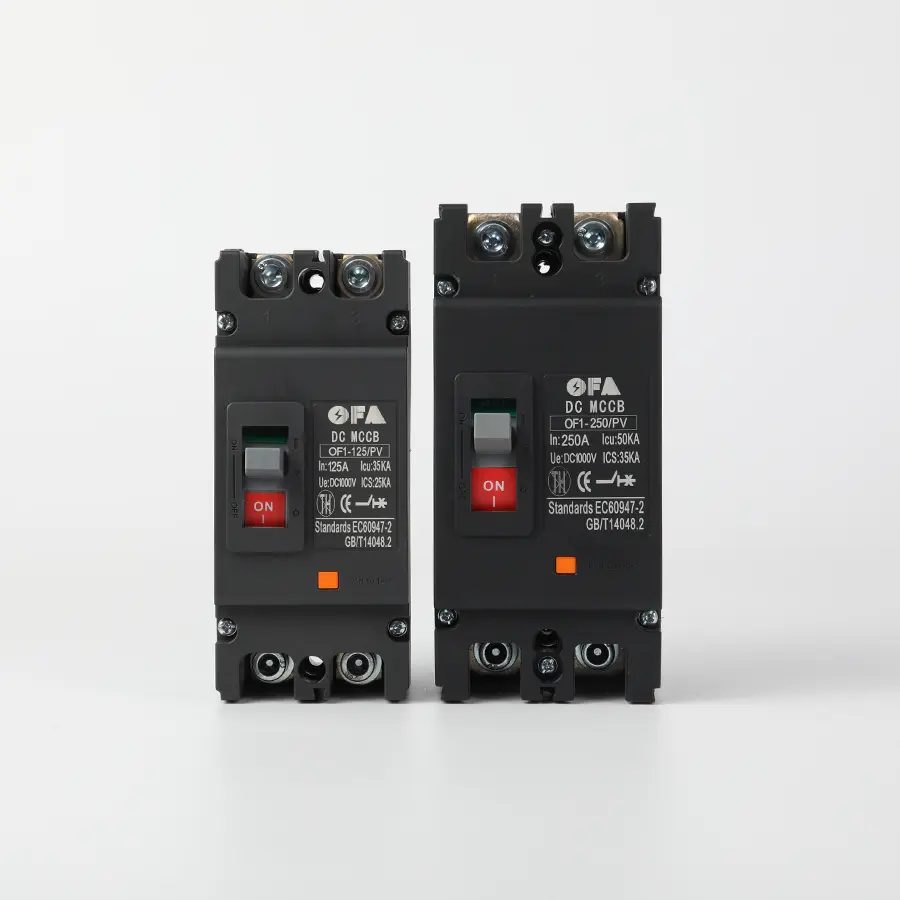

OF1 Series

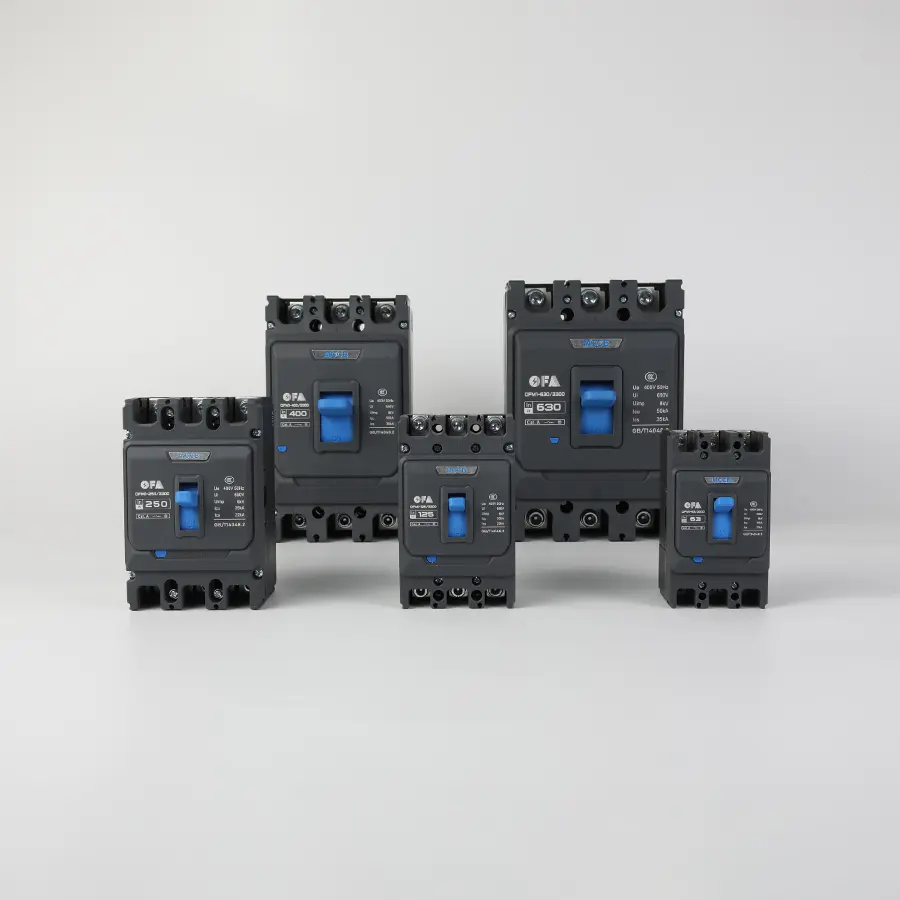

OFA-M1 Series
Reliable terminal protection in modern low-voltage power distribution systems, offering space-saving designs and high breaking capacities.
OF6KA Series
OF10KA C65 Series
OFAFT Series

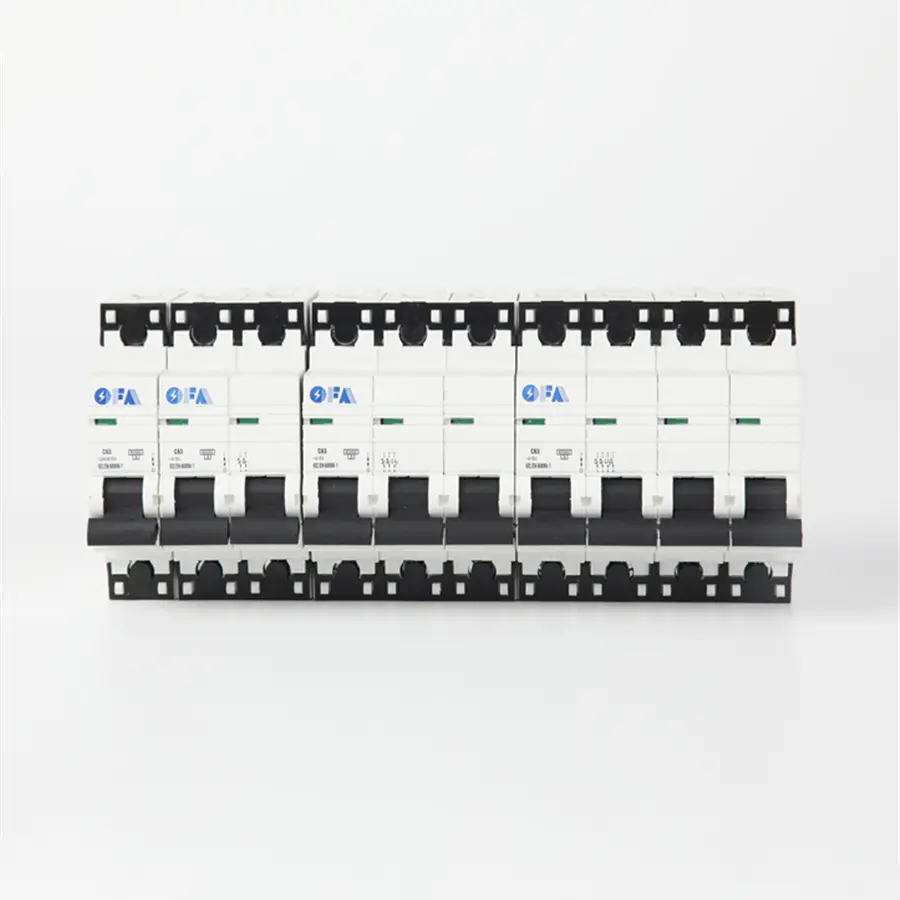

OFD4Z7 Series

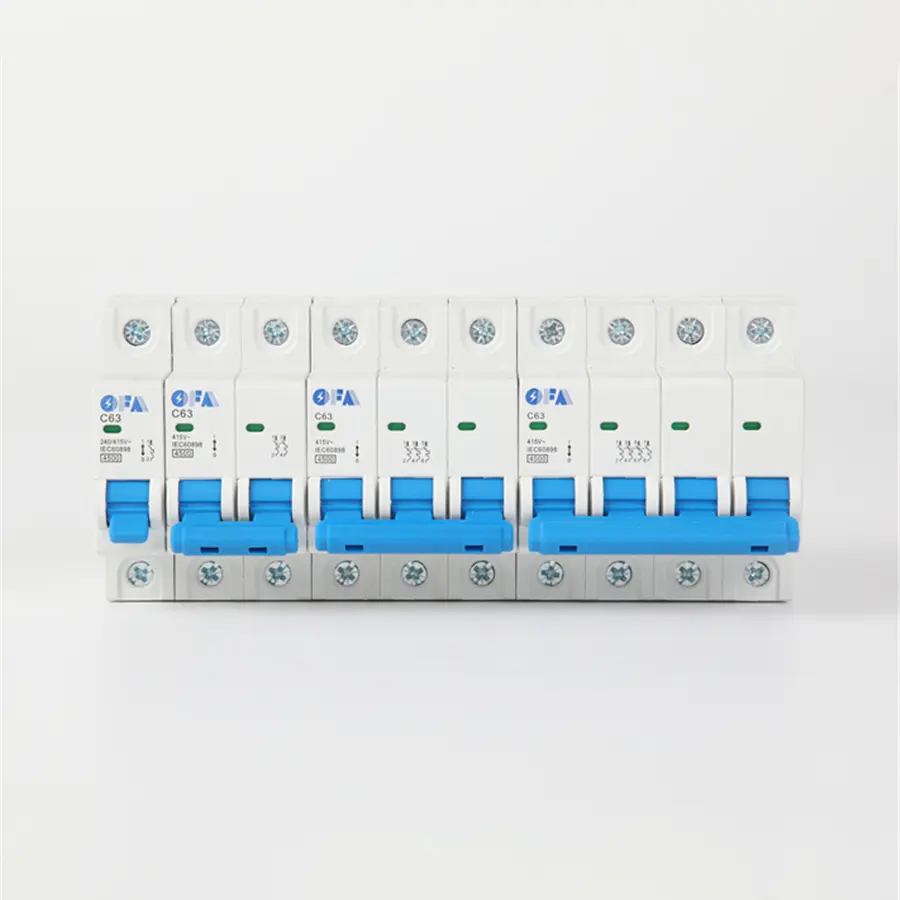

OFDL Series
OFDP Series

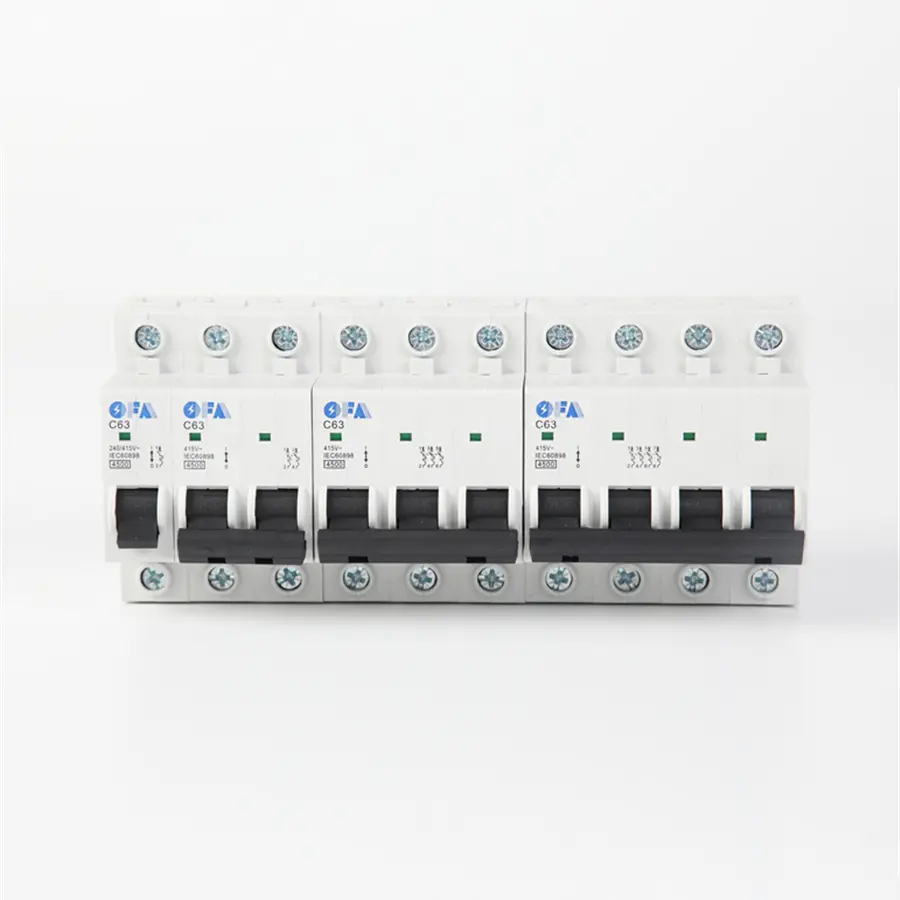

OFDZ47 Series

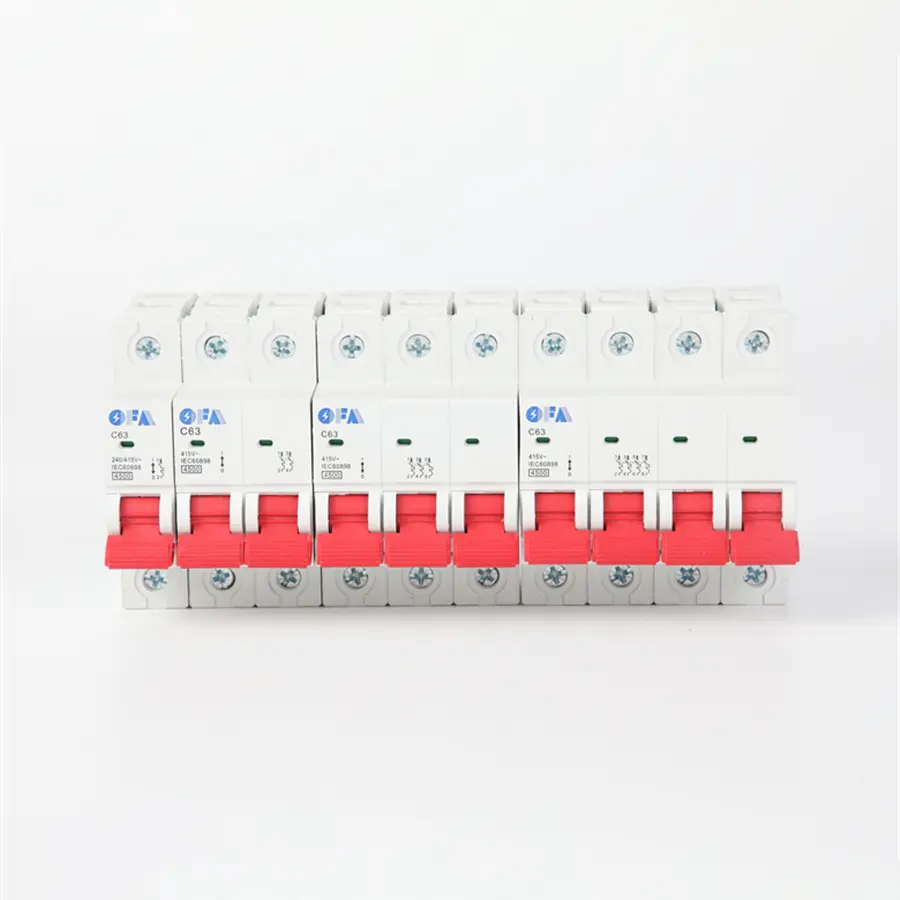

OFEU Series

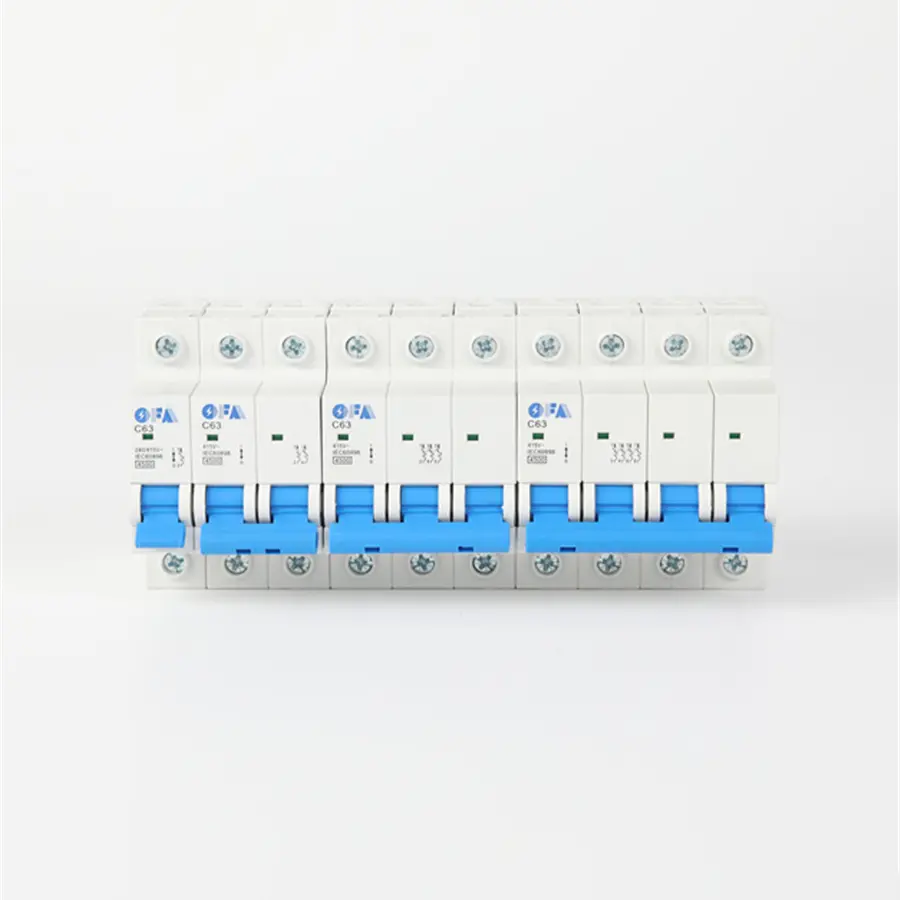

OFKL Series

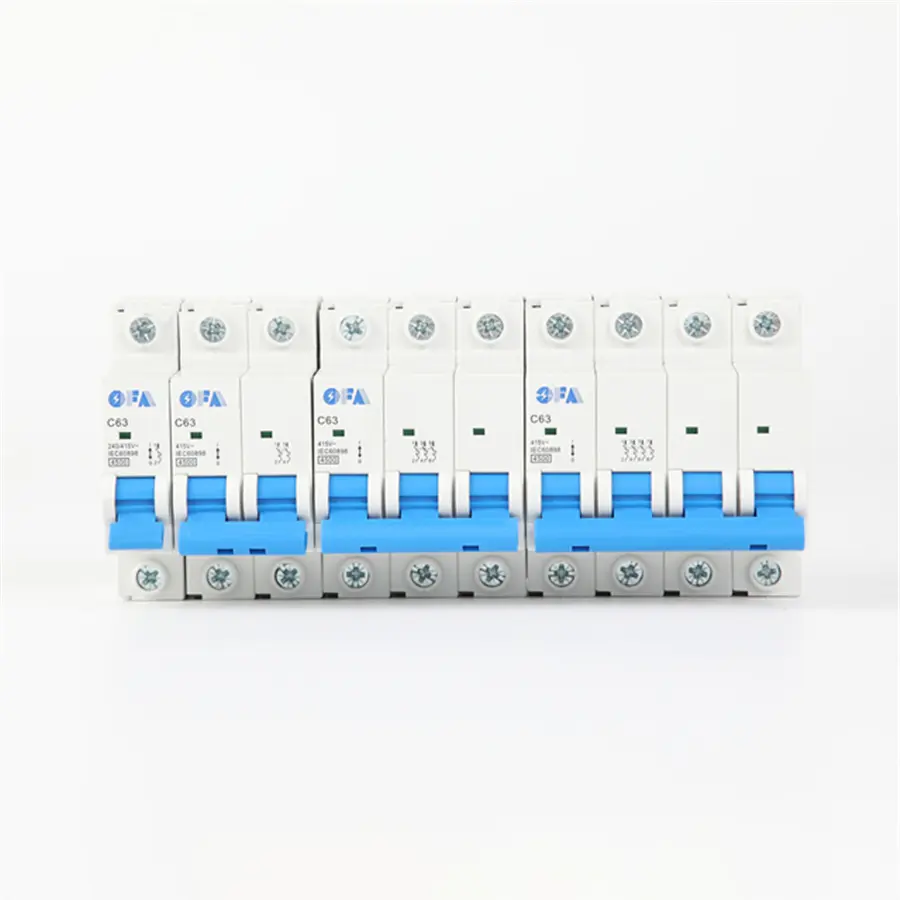

OFKL-NXB Series

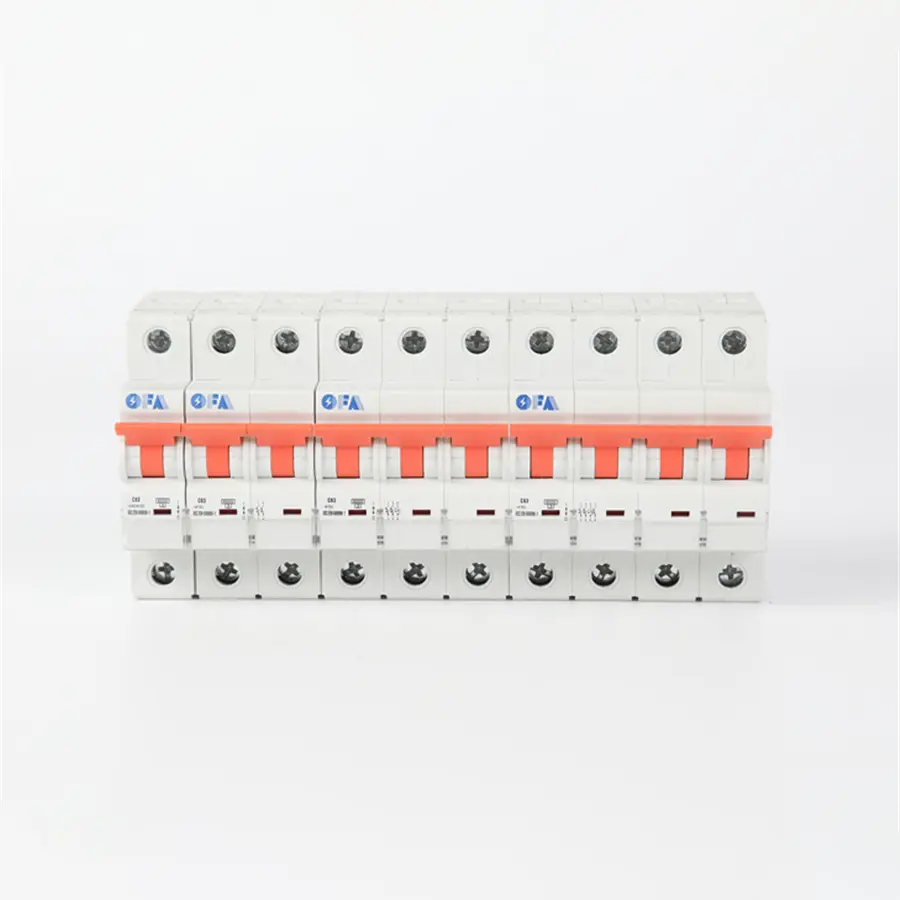

OFL7 Series

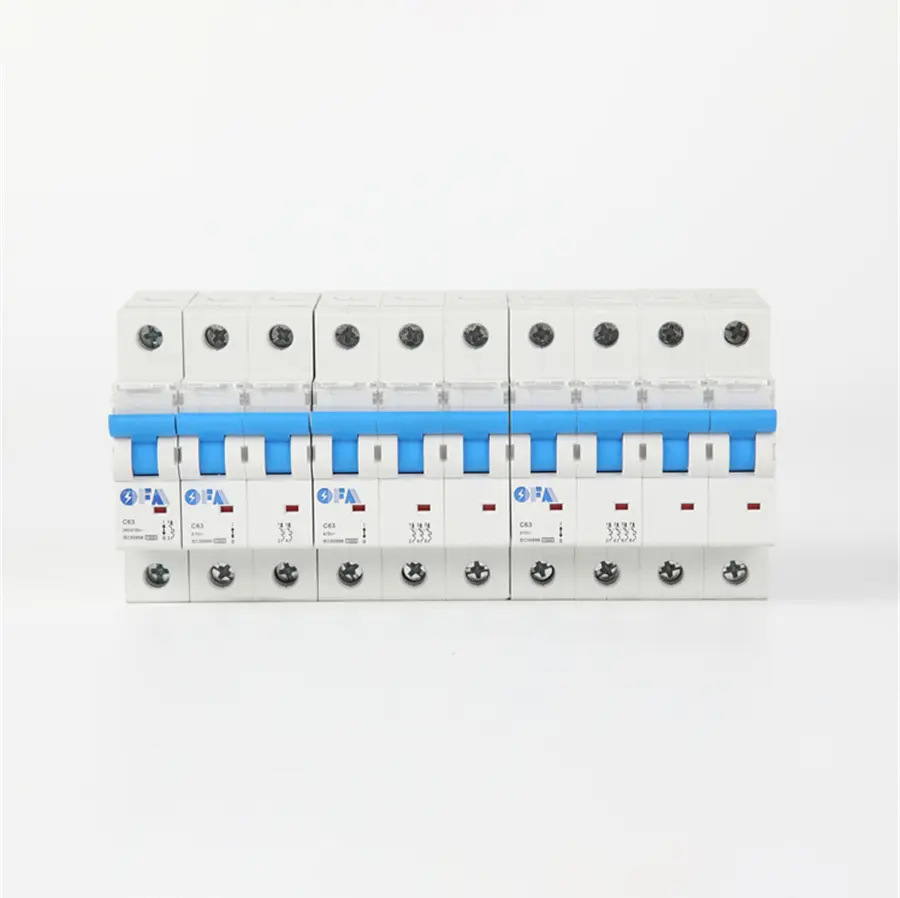

OFL8 Series

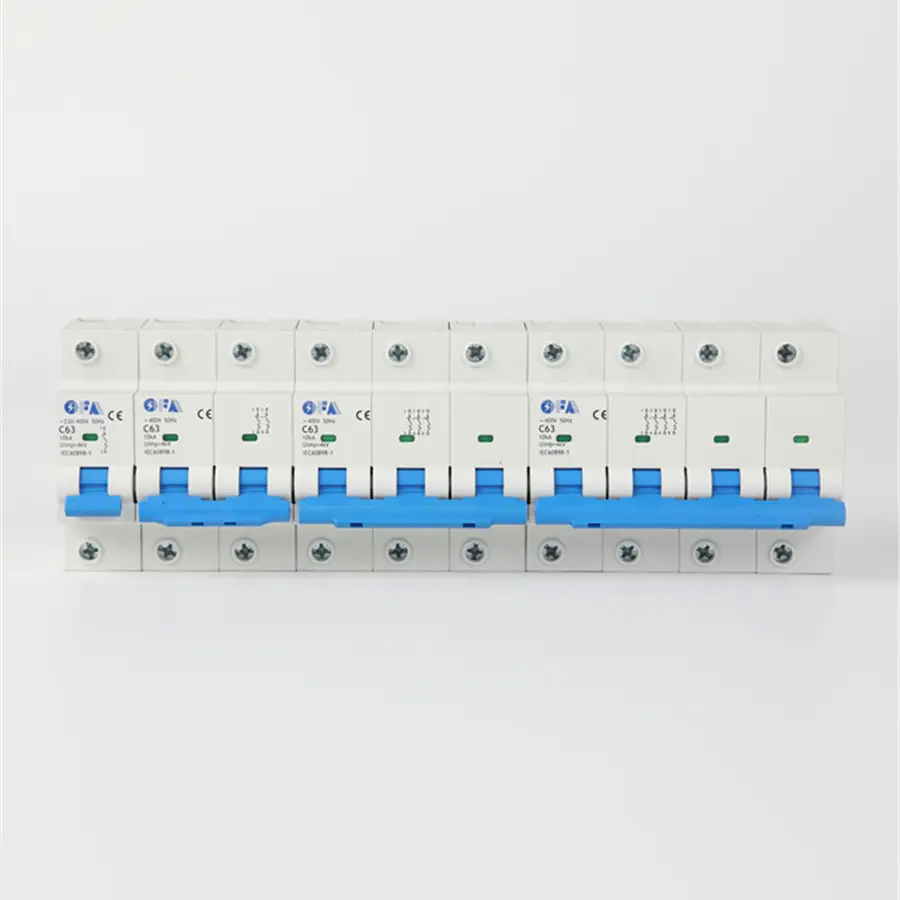

OFNC Series

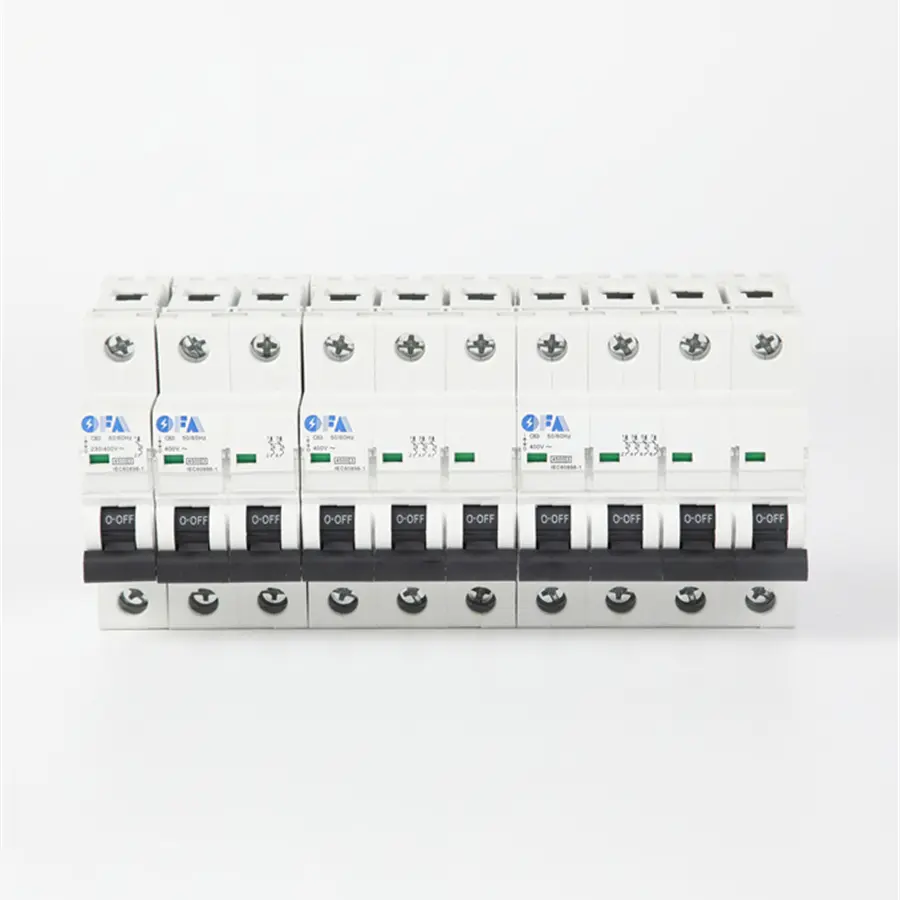

OFPF Series

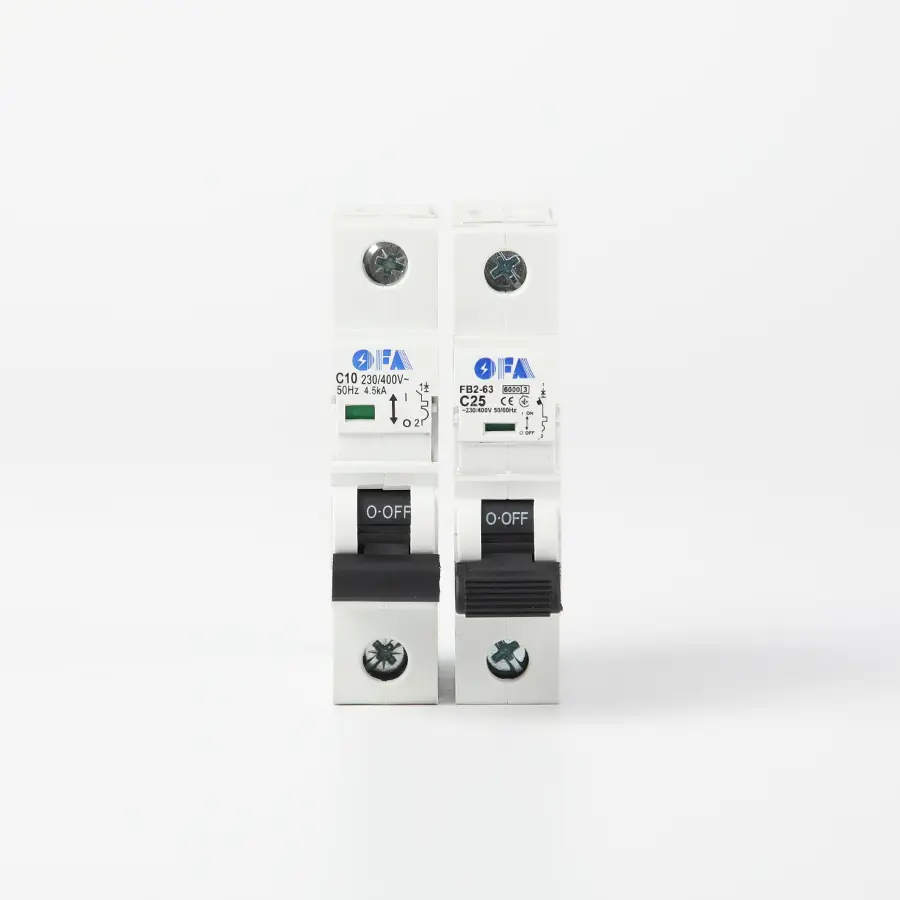

OFP Series
Featuring intelligent universal circuit breakers for major utility interties alongside specialized residual current devices providing dual overload and earth-leakage safety.
OFW1 ACB Series
OFAP6-AC RCCB
OFC Series RCBO
OFIS-125A Switch
OFIS-BH Isolator
OFIS-DS Series
Navigating international supply chains for mission-critical electrical equipment demands a structured framework. Below is our engineering-oriented engagement process for standard and customized projects:
Discover our specialized high-breaking capacity DC Molded Case Breakers, Residual Current Breakers, and 4-Pole isolation units engineered for global power automation systems.
See why global EPC contractors, power system integrators, and industrial facility managers rely on OFA products.
"As a system integrator in Poland, we collaborated with OFA on several industrial automation transfer switch projects. Their comprehensive range from protective relays to molded case circuit breakers simplified our procurement immensely."
"We purchased OFA's intelligent power monitoring circuit breakers to upgrade our workshop emergency generator isolation panels. Installation was straightforward, and they have operated flawlessly for over a year."
"Our Chilean PV microgrid project required robust DC MCCBs and reliable communication gear. OFA's technical team provided outstanding remote engineering support and rapid delivery under strict deadlines."
Comprehensive answers to common engineering, procurement, and technical selection questions regarding generator circuit breaker switches.
